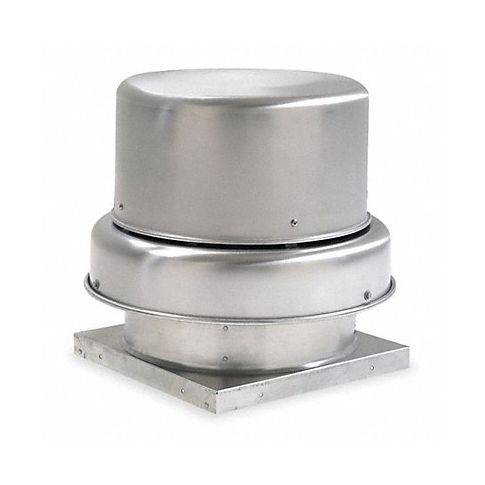

Alu 25 Dia 25.5 H Roof Fan w.Motor MPN:5DVT2

Discount: See in Cart
Free Shipping
In Stock
Brand: Dayton
Part #: 5DVT2
SKU
226-CXG-5DVT2
$1,098.99
Alu 25 Dia 25.5 H Roof Fan w.Motor

Introducing Dayton's new Alu 25 Dia 25.5 H Roof Fan with Motor - a top-notch ventilation solution for both residential and commercial spaces. This powerful fan offers variable speed control and electronically commutated motor (ECM) technology, making it highly efficient and energy-saving. The pre-mounted potentiometer dial enables users to adjust the speed easily, while its quiet operation ensures minimal disturbance. Unlike traditional belt-driven motors, this fan does not require any maintenance or replacement of parts, resulting in a long-lasting and hassle-free performance. Whether it's for removing odors, moisture, or improving indoor air quality, the Alu 25 Dia 25.5 H Roof Fan with Motor is an ideal choice that provides reliable ventilation solutions without compromising on performance or efficiency.

Top product features:

  • Electronically commutated motor (ECM) technology
  • Variable speed motor
  • Direct drive

Top product applications:

  • Ventilation of residential and commercial spaces
  • Removal of odors, moisture, and contaminants
  • Improvement of indoor air quality
This variable-speed, downblast roof mount ventilator allows up to 80% useable turndown and eliminates the need for a speed control. It features electronically commutated motor (ECM) technology, a variable speed motor, and a potentiometer dial pre-mounted on the motor to control speed. It addition to quiet and cool operation, the motor does not require belt or pulley maintenance, and is engineered to offer long service life due to lower running temperatures.

Technical Specifications

  • Item Downblast Ventilator
  • Drive Type - Roof Ventilators Direct Drive
  • Duty Rating - Roof Ventilators Standard
  • Drive Package With Motor Included Yes
  • Voltage - Roof Ventilators 115V AC
  • Motor HP - Roof Ventilators 1/4 hp
  • Base Size - Roof Ventilators 22 in x 22 in
  • Number of Speeds Variable
  • Mounting Location - Roof Ventilators Roof
  • Wheel Dia. 11 in
  • Item - Roof Ventilators Downblast Ventilator
  • CFM @ 0.000-In. SP 729/966/1462
  • CFM @ 0.125-In. SP 623/883/1405
  • CFM @ 0.250-In. SP 473/805/1351
  • CFM @ 0.375-In. SP -/702/1298
  • CFM @ 0.500-In. SP -/507/1250
  • CFM @ 0.625-In. SP -/-/1193
  • CFM @ 0.750-In. SP -/-/1126
  • CFM @ 0.875-In. SP -/-/1052
  • CFM @ 1.000-In. SP -/-/955
  • Sones @ 0.125-In. SP @ 5 Ft. 3.7/6.0/11.8
  • Sones @ 0.250-In. SP @ 5 Ft. 2.9/5.7/11.4
  • Sones @ 0.500-In. SP @ 5 Ft. -/4.1/10.9
  • Phase 1
  • Hz 60
  • Max. Operating Amps 3.9
  • Motor Type EC Motor
  • Max. BHP 0.04/0.09/0.31
  • RPM 860/1140/1725
  • Base Height 1 3/4 in
  • Overall Dia. 24 3/8 in
  • Overall Height 23 3/4 in
  • Shaft Dia. Wheel End 1/2 in
  • Max. Inlet Temp. 130 Degrees
  • Housing Material Spun Aluminum
  • Wheel Material Aluminum
  • Wheel Type Backward Inclined Centrifugal
  • Speed Control 43Y140
  • Speed Controllable Yes
  • Adj. 12 3/8"H Roof Curb Stock No. 2ZV82
  • Adj. 6 3/8"H Roof Curb Stock No. 4C453
  • Assembled/Unassembled Assembled
  • Recommended 12 In. Fixed Curb Item No. 2RB76
  • Recommended 8 In. Fixed Curb Item No. 4HX39
  • Agency Compliance UL/cUL 705, AMCA Sound, Air
  • Dimension A 22 in
  • Dimension B 24 3/8 in
  • Dimension C 23 3/4 in
  • Dimension D 4 3/8 in
  • Includes NEMA 1 Junction Box

Manufacturer Details

  • Manufacturer: Dayton
  • Condensed Mfg Number: 5DVT2
  • MPN: 5DVT2

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8414596560
  • GDS Category Name: Centrifugal Downblast Roof Exhaust Fans with Motor
  • GDS Family Name: Roof Ventilators
  • GDS Segment Name: HVAC and Refrigeration
  • UNSPSC: 40101502
  • UNSPSC Class ID: 15
  • UNSPSC Commodity Name: Ventilation
  • UNSPSC Commodity ID: 02
  • UNSPSC Commodity Name: Air exhausters
  • UNSPSC Family ID: 10
  • UNSPSC Family Name: Heating and ventilation and air circulation
  • UNSPSC Segment ID: 40
  • UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

  • Not For Sale In: HI AK PR
