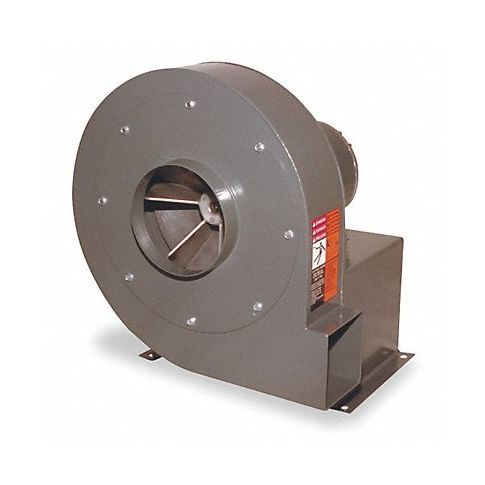

Blower 13 1/2in MPN:7D752

Radial blade, high-pressure direct-drive blower features a housing can be rotated to 8 discharge positions in each rotation. Powerful blower supplies high-pressure air for efficient cooling and conveying. Paddle-type, self-cleaning, die-cast wheels rotate clockwise and are precision balanced for top performance. Bottom horizontal discharge. Great for small-ducted dust exhaust systems and wherever dust collection bags are necessary.

Technical Specifications

• Item High Pressure Blower
• Type With Motor
• Wheel Dia. (In.) 13-1/2
• CFM @ 1.000-In. SP 2005
• CFM @ 2.000-In. SP 1919
• CFM @ 3.000-In. SP 1832
• CFM @ 4.000-In. SP 1741
• CFM @ 5.000-In. SP 1647
• CFM @ 6.000-In. SP 1547
• CFM @ 7.000-In. SP 1438
• CFM @ 8.000-In. SP 1319
• dBA @ 5 Feet 92
• Max. Inlet Temp. (Deg. F) 180
• Max. Ambient Temp. (F) 104
• Voltage 208-230/460
• Phase 3
• Hz 60
• Full Load Amps 19.5-17.6/8.2
• Motor HP 7-1/2
• Motor RPM 3460
• Motor Enclosure Open Dripproof
• Motor Frame 184T
• Shaft Dia. (In.) 1-1/8
• Height (In.) 23-1/8
• Width (In.) 22-3/8
• Depth (In.) 18-7/8
• Inlet Dia. (In.) 8
• Discharge Height (In.) 7-1/8
• Discharge Width (In.) 5-3/4
• Wheel Width (In.) 4-3/8
• Wheel Bore (In.) 1-1/8
• Blower RPM 3460
• Rotation CW
• Housing Material Steel
• Housing Finish Gray Polyester Epoxy
• Wheel Material Aluminum
• Assembled/Unassembled Unassembled
• Agency Compliance AMCA AIR
• Dimension A (In.) 17-5/8
• Dimension B (In.) 11-1/4
• Dimension C (In.) 7-1/8
• Dimension D (In.) 5-3/4
• Dimension E (In.) 8
• Dimension F (In.) 9-9/16
• Dimension G (In.) 1
• Dimension H (In.) 10-1/2
• Dimension J (In.) 9-5/8
• Dimension L (In.) 11
• Dimension R (In.) 11-1/2
• Dimension K (In.) 11-3/8
• Dimension O (In.) 18-7/8
• Dimension P (In.) 8
• Dimension S (In.) 8-1/8
• Dimension V (In.) 7-1/4

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 7D752
• MPN: 7D752

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414599080
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
