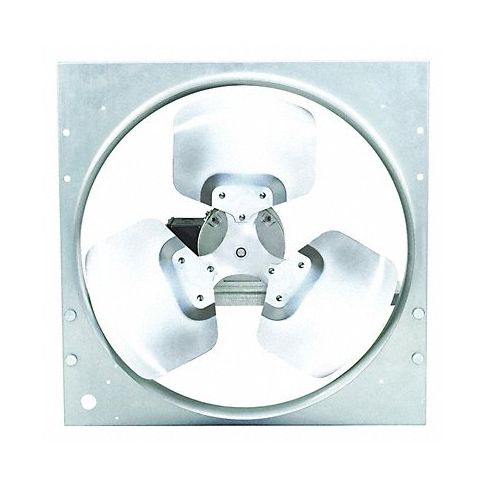

Exhaust Fan 20In Bl Aluminum 115/230V MPN:10D976

Technical Specifications

• Item Exhaust Fan
• Type Commercial Direct Drive
• Blade Dia. 20 in
• CFM @ 0.000-In. SP 4,495 cfm
• CFM @ 0.125-In. SP 4,134 cfm
• CFM @ 0.250-In. SP 3,562 cfm
• CFM @ 0.375-In. SP 2,926 cfm
• Sones @ 0.000-In. SP @ 5 Ft. 18
• Sones @ 0.125-In. SP @ 5 Ft. 20
• Max. Ambient Temp. (F) 104 Degrees F
• Fan Voltage 115/230V AC
• Exhaust/Supply Fan Item Exhaust Fan
• Hz 60
• Phase 1
• Exhaust/Supply Fan Motor HP 1/2 hp
• Motor RPM 1,150 RPM
• Motor Enclosure Totally Enclosed Air Over
• Motor Insulation Class B
• Bearing Type Ball
• Full Load Amps 5.4/2.8
• Watts 525 W
• Height (In.) 24 in
• Width (In.) 24 in
• Max. Depth (In.) 13 1/4 in
• Venturi Depth (In.) 3 1/2 in
• Flange Width (In.) 1 in
• Frame Material Galvanized
• Frame Finish Galvanized
• Propeller Material Aluminum
• Number of Blades 3
• Mounting Position Vertical or Horizontal
• Speed Control No
• Agency Compliance UL and cUL Listed, AMCA
• For Use With General Ventilation Applications
• Aluminum Wall Shutter No. 4C559
• Fiberglass Wall Shutter No. 5C214
• Galvanized Wall Shutter No. 1C745
• Intake Guard No. 1WBU2

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 10D976
• MPN: 10D976

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596595
• GDS Category Name: Axial Exhaust and Supply Fans with Motor
• GDS Family Name: Exhaust Fans
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
