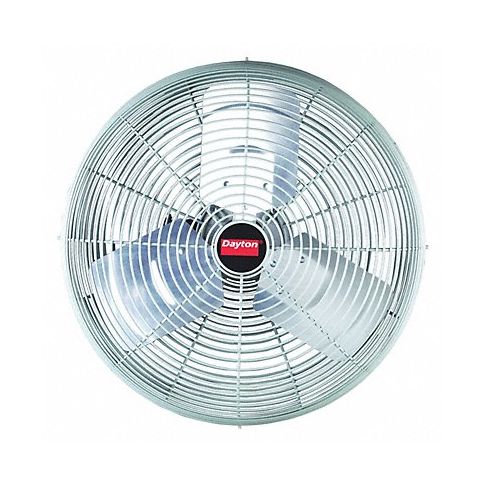

Stndrd Dty Indstrl Fan 20 Blde Dia 2Spd MPN:1VCF2

Standard-duty industrial fan heads provide cooling in heavy manufacturing areas and other dusty or dirty environments. These fan blade, motor, and guard assemblies can be paired with a new or existing bracket or base.

Industrial fan heads are assemblies for replacing a broken fan head on an existing mount or pairing with a new mount to create a fan suited for a specific environment or application. These fan blade, motor, and guard assemblies are used with a separate base or mounting bracket. They are made of heavy-gauge materials suitable for daily use in industrial cooling and temperature-regulation applications. Their powerful motor drives the fan blades to move large volumes of air, is totally enclosed to keep out dirt and dust, and features high-performance bearings for a long life. The guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.

Technical Specifications

• Item Standard-Duty Industrial Fan
• Blade Diameter 20 in
• Wheeled Base Stationary
• Oscillation Oscillating
• Watts 220/160
• Number of Speeds 2
• Voltage 115V AC
• Phase 1
• Air Flow 3080/4750 cfm
• Motor HP 1/4 hp
• RPM 1100/850
• Amps 2/1.4
• Fan Mounting Location Fan Head Only
• Air Velocity @ 10 Ft. 910/600
• Air Velocity @ 20 Ft. 580/375
• Air Velocity @ 40 Ft. 150/100
• Air Velocity @ 60 Ft. 155/100
• Assembly Required No
• Sound Level 76 dBA
• Max. Ambient Temp. 104 Degrees F
• Hz 60
• Motor Enclosure Totally Enclosed Air-Over
• Motor Insulation Class B
• Motor Type Permanent Split Capacitor
• Thermal Protection Automatic Reset
• Bearing Type Ball
• Fan Cord Length 10 ft
• NEMA Plug Configuration 5-15P
• Height 23 in
• Width 23 in
• Depth 17 3/4 in
• Number of Blades 3
• Blade Material Aluminum
• Shaft Dia. 1/2 in
• Fan Housing Material Steel
• Color Gray
• Guard Material Steel
• Wire Guard Finish Polyester Powder Coated Gray
• Number of Conductors 3
• Height Adjustment Fixed Height
• Drive Type Direct
• Standards cULus Listed
• Includes Mounting Bolts
• Environmental Applications Industrial

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 1VCF2
• MPN: 1VCF2

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: Y
• CA Prop 65 Warning Msg Scenario: 7

Classification Details

• Harmonization Code: 8414596590
• GDS Category Name: Industrial Fans
• GDS Family Name: Cooling Fans and Air Circulators
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101602
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air circulators
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
