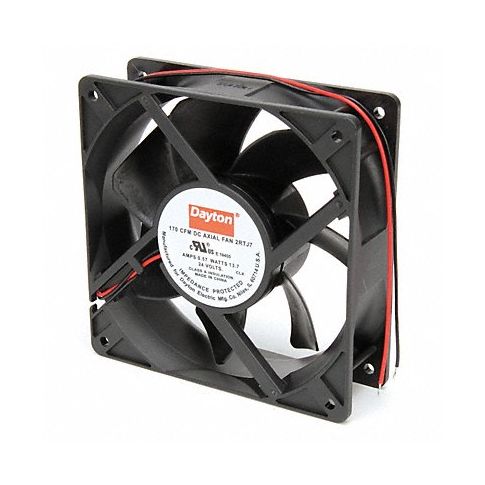

Axial Fan Square 4-11/16 H 170 CFM MPN:2RTJ7
Axial Fan Square 4-11/16 H 170 CFM
Introducing our standard square axial fan, an ideal solution for cooling equipment in confined spaces with its unique square shape that can mount over a round cutout or fit into a square cutout. Its compact size requires minimal space while its square housing allows for easy installation against the interior of an enclosure. With mounting holes at each corner for securing to walls and panels, this fan is perfect for HVAC and refrigeration applications where full access is needed during installation. Experience efficient cooling with our standard square axial fan designed to keep your equipment running smoothly without taking up extra space.
Top product features:
- Square Housing Enables easy installation and fits into confined spaces
- Mounting Holes Secure fans to walls or panels with ease
- Compact Size Requires minimal space for installation
Top product applications:
- Cooling equipment in confined spaces Typically used where there is full access for mounting against an interior enclosure and space is limited
- HVAC and Refrigeration systems Used to cool equipment such as condensers, coils, compressors or heat exchangers
- General ventilation Can be used in various industrial applications where air movement and temperature control is required
Standard square axial fans are used in dry locations to cool equipment within an enclosure. These equipment-cooling fans have a square housing that can mount over a round cutout or fit into a square cutout for installation.Square compact axial fans have a square-shaped housing that can span a round cutout or fit into a square cutout for cooling equipment within an enclosure. These equipment-cooling fans require minimal space for installation and are typically installed where there's full access for mounting them against the interior of an enclosure. They have mounting holes at each corner for securing them to a wall or panel.
Technical Specifications
- Item Standard Square Axial Fan
- Fan Shape Square
- Mounting Eye O.C. 4 1/8 in
- Height 4 11/16 in
- Depth 1 1/2 in
- Width 4 11/16 in
- CFM @ 0.000-In. SP 170
- Watts 13.7
- Voltage 24V DC
- Amps 0.57
- Electrical Connection - Fans Lead Wires
- Sound Level 51
- IP Rating IP20
- Mounting Position Vertical or Horizontal
- Bearing Type Ball
- RPM 3800
- Motor Design Brushless DC
- Motor Insulation Class A
- Thermal Protection Impedance
- Max. Ambient Temp. 158 Degrees F
- Blade Material Polybutylene
- Housing Material PBT Plastic
- Color Black
- Standards RoHS Compliant, UL Recognized
- Environmental Applications Equipment Cooling
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 2RTJ7
- MPN: 2RTJ7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8414596590
- GDS Category Name: Axial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
