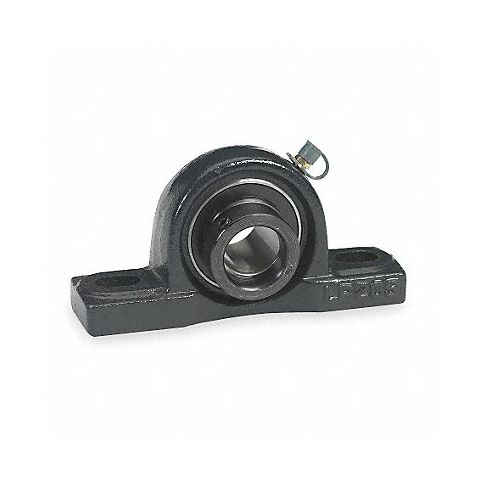

Pillow Block Brg 1 1/8 in Bore Cast Iron MPN:3FCT4
With a cast iron housing containing spherical ball bearings, the pillow block bearing measures 1.92 tall x 2.81 wide with a weight of 2.3lbs making it suitable for heavy machinery applications. It is well suited in situations where angular misalignment may occur owing to its unique 18-degree angle on mounting holes providing ease of installation despite any deflections in loadings thus promoting maintenance free operations over long periods without the need for lubrication. Its use extends across various industries such as robotics, automotive or agriculture among others with moment loads handling capabilities ensuring maximum deflection control while guaranteeing long-term durability under all conditions providing users an affordable solution within their power transmission needs.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/8 in
- Bolt Hole Center-to-Center 4 3/4 in
- Mounting Surface to Shaft Center 1 9/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Eccentric Locking Collar
- Bearing Insert Material 52100 Chrome Steel
- Series Standard Duty
- Number of Bolts 2
- Bolt Size 1/2 in
- Overall Height 3 3/16 in
- Overall Width 2 in
- Overall Length 6 1/2 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 4,382 lb
- Static Load Capacity 2,517 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCT4
- MPN: 3FCT4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
