Pillow Block Brg 1 1/2 in Bore Cast Iron MPN:3FCT9

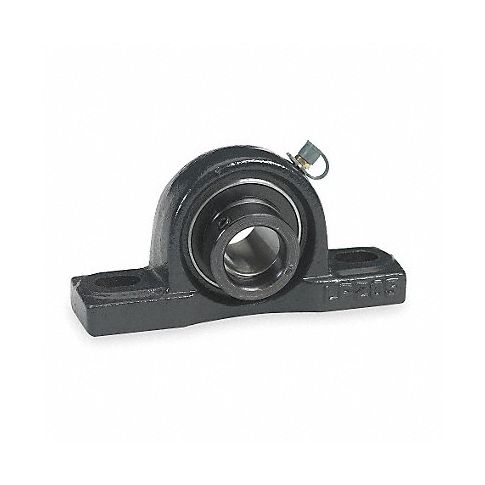

Pillow Block Brg 1 1/2 in Bore Cast Iron
JEM's pillow block bearings provide precision alignment and smooth operation in diverse industries like automotive and food processing machinery due to their cast iron housings and sturdy brass cages that endure high radial loads. The easy installation and grease injection ports of these bearings minimize downtime by allowing for convenient maintenance without disassembly, fitting perfectly in space-restricted environments often found in machine tooling or instrumentation devices. With its durability and reliability, JEM's pillow block bearings deliver cost-effective performance over time, ensuring consistent operation of the equipment it supports.
Get Dayton item #3FCT9 from our selection of Hardware Accessories while supporting Veterans 🎖.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/2 in
- Bolt Hole Center-to-Center 5 13/32 in
- Mounting Surface to Shaft Center 1 15/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Eccentric Locking Collar
- Bearing Insert Material 52100 Chrome Steel
- Series Standard Duty
- Number of Bolts 2
- Bolt Size 1/2 in
- Overall Height 3 27/32 in
- Overall Width 2 7/32 in
- Overall Length 7 1/4 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 6,652 lb
- Static Load Capacity 4,090 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCT9
- MPN: 3FCT9
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 24, 2024 5:19pm UTC
Category: Bearings
