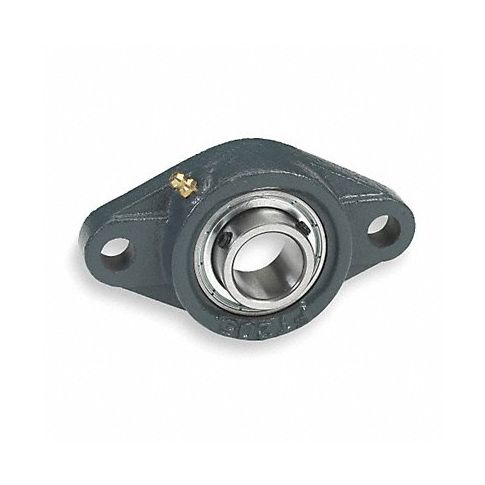

2 Bolt Flange Bearing Ball 1/2in Bore MPN:3FCU7
This ball bearing can be found mainly used in power tools where movement or rotational movements are required for instance drilling presses, bench grinders, routers, woodworking equipment where smooth operation, reduced friction and accurate movement is critical for precision work output making sure end result is precise with every use. Being a double bolt flange type it can also be found in compressors, pumps or motors which requires radial load bearing and high stability, even under vibrations which could affect other bearings. Its 1/2inch bore size allows to accommodate small shaft sizes perfect for hobbyists, repair and maintenance where they might require bearings of the same dimensions to make adjustments, repairs or modifications into machinery in which small bearings such as this can improve performance at a reasonable cost making their equipment last longer with reduced downtime.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 17/32 in
- Series Standard Duty
- Bolt Size 3/8 in
- Overall Height 1 9/32 in
- Overall Width 2 3/8 in
- Overall Length 4 13/32 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,146 lb
- Static Load Capacity 1,074 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
- Dimension A 4 13/32 in
- Dimension B 2 15/64 in
- Dimension C 3 17/32 in
- Dimension D 13/32 in
- Dimension F 1 9/32 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCU7
- MPN: 3FCU7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
