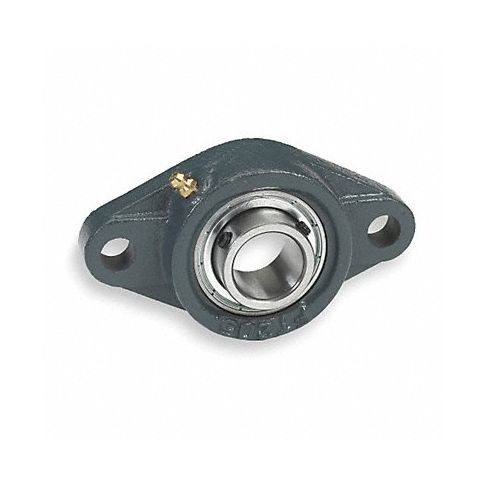

2 Bolt Flange Bearing Ball 1 7/16in Bore MPN:3FCV8
The locking flange bearing ball with 1 7/16-inch bore is well-suited for use by diverse industries ranging from agricultural or construction machinery to automotive and material handling sectors where enhanced performance, strength & reliability are essential; its durable design ensures smooth operation even under challenging circumstances making it popular among mining, oilfield equipment, pump industries that require sturdy yet cost-effective solutions capable of withstanding rigorous usage. Being easy to install and requiring minimal maintenance due to its solid construction materials allows production facilities or repair shops focused on optimizing their operations & reducing costs by lowering downtime while increasing productivity thus contributing immensely to their bottom line resulting in substantial savings over time making it a top choice for serious users wanting dependability at an affordable price point.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 7/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series Standard Duty
- Bolt Size 1/2 in
- Overall Height 1 3/4 in
- Overall Width 3 3/4 in
- Overall Length 6 1/8 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 5,775 lb
- Static Load Capacity 3,415 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
- Dimension A 6 in
- Dimension B 3 3/4 in
- Dimension C 5 1/8 in
- Dimension D 35/64 in
- Dimension F 1 3/4 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCV8
- MPN: 3FCV8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
