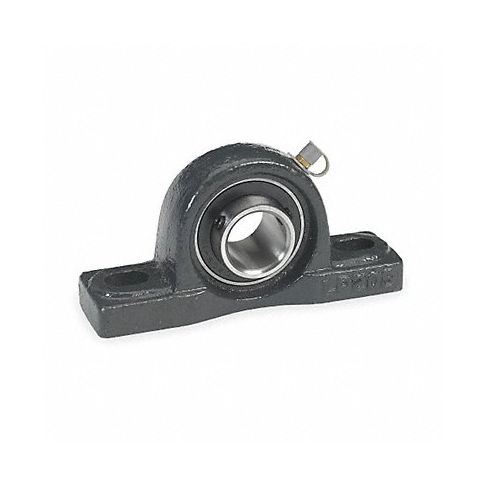

Pillow Block Brg 1 3/16in Bore Cast Iron MPN:3FDA1
The Dayton 3FDA1 Pillow Block Bearing is an exceptional piece designed to enhance your machinery's performance. This Pillow Block Bearing is a mounted bearing item that can serve numerous functions with its ball bearing insert type. The bore dia. of this product is 1 3/16 inches, while the bolt hole center-to-center spacing measures at 4 3/4 inches. It features multiple boltholes, making it easy to install and maintain in diverse applications. Apart from its functionality, this product also has aesthetic appeal owing to its durable cast iron construction that ensures a long service life. With unmatched quality control measures in place, you can rely on the Dayton 3FDA1 Pillow Block Bearing to provide excellent performance without disappointments. Order now and enjoy the exceptional performance of this high-quality product!
Top product features:
- Bore Dia. Allows for precise and accurate installation in diverse applications.
- Ball bearing insert type Ensures high load capacity and durability.
- Multiple boltholes Facilitates easy installation and maintenance.
Top product applications:
- Mounted bearing applications in numerous industries such as manufacturing plants, agriculture equipment, construction sites, and mining.
- Reducing vibration during high-load operations due to the ball bearing insert type.
- Facilitating easy installation by using multiple boltholes for mounting purposes.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Bolt Hole Center-to-Center 4 3/4 in
- Mounting Surface to Shaft Center 1 11/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Air Handling Standard Duty
- Number of Bolts 2
- Bolt Size 1/2 in
- Overall Height 3 5/16 in
- Overall Width 1 7/8 in
- Overall Length 6 1/2 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 4,382 lb
- Static Load Capacity 2,517 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDA1
- MPN: 3FDA1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 30, 2023 11:49pm UTC Category: Bearings
