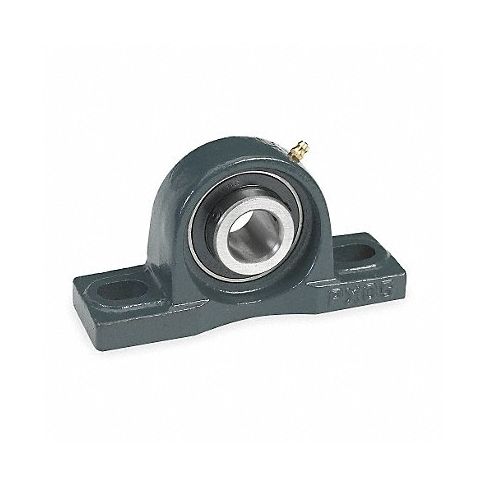

Pillow Block Brg 1 3/16in Bore Cast Iron MPN:3FDC4
Manufactured with heavy-duty capabilities ideal for high demand industries, this pillow block bearing boasts an unparalleled load capacity that sets it apart from other bearings made of metal. Its non-corrosive material prevents rust or corrosion when exposed to challenging environments enabling prolonged operational periods while saving businesses money on maintenance expenses related to early wear and tear. By providing cost-effectiveness, ease of installation as well as smooth performance throughout its service life that lasts far longer than bearings made out of metal materials available in the marketplace - all factors make this robust bearing perfect for various applications without exception thereby guaranteeing a remarkable return on investment compared to alternatives.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Bolt Hole Center-to-Center 5 in
- Mounting Surface to Shaft Center 1 7/8 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Medium Duty
- Number of Bolts 2
- Bolt Size 1/2 in
- Overall Height 3 11/16 in
- Overall Width 2 1/4 in
- Overall Length 6 7/8 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 5,775 lb
- Static Load Capacity 3,415 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDC4
- MPN: 3FDC4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
