2 Bolt Flange Bearing Ball 3/4in Bore MPN:3FDE1

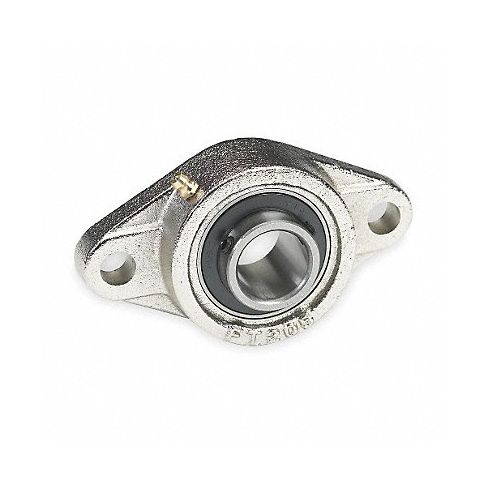

2 Bolt Flange Bearing Ball 3/4in Bore
2 Bolt Flange Bearing Ball excels as an effective bearing component for various power tools such as drill presses, grinders, mills, and lathes among other machinery requiring low-noise, high precision rotational motion for accurate operations. The flanged design provides added stability during use while the self-lubricating properties of the ball bearing reduce friction ensuring longer operational life of tools. The 3/4-inch bore and two bolt design offer versatility in fitting different shaft sizes effectively across diverse industries like automotive, aerospace or machine shops.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including Dayton item #3FDE1.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 17/32 in
- Series Nickel Plated Standard Duty
- Bolt Size 3/8 in
- Overall Height 1 9/32 in
- Overall Width 2 3/8 in
- Overall Length 4 13/32 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,876 lb
- Static Load Capacity 1,493 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Nickel Plated
- Includes (2) Set Screws, Oiler Cap
- Dimension A 4 13/32 in
- Dimension B 2 15/64 in
- Dimension C 3 17/32 in
- Dimension D 13/32 in
- Dimension F 1 9/32 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDE1
- MPN: 3FDE1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:40am UTC
Category: Bearings
