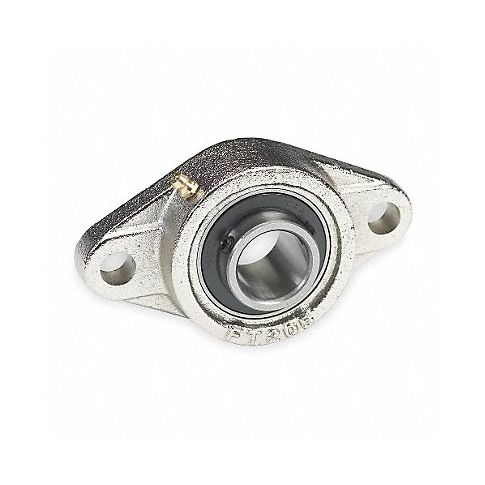

2 Bolt Flange Bearing Ball 1 3/16in Bore MPN:3FDE3
The 2 bolt flange bearing ball from Titan USA is an essential power transmission component ideal for use in various industries such as automotive, aerospace, and construction. Its compact design with a bore diameter of 1 3/16 inches allows for easy installation on a range of power tools and machinery, providing smooth and steady rotation while preventing unwanted movement or vibration. The 2 bolt flange design offers increased stability ensuring the bearing ball remains securely fastened to the tool during operation, increasing its efficiency and precision. With its robust construction and durability, the 2 bolt flange bearing ball from Titan USA is a versatile power transmission component for professionals requiring accurate and steady rotation in their work.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 19/32 in
- Series Nickel Plated Standard Duty
- Bolt Size 7/16 in
- Overall Height 1 37/64 in
- Overall Width 3 1/4 in
- Overall Length 5 9/16 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 4,382 lb
- Static Load Capacity 2,517 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Nickel Plated
- Includes (2) Set Screws, Oiler Cap
- Dimension A 5 9/16 in
- Dimension B 3 1/4 in
- Dimension C 4 19/32 in
- Dimension D 1/2 in
- Dimension F 1 37/64 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDE3
- MPN: 3FDE3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
