4 Bolt Flange Bearing Ball 1 3/16in Bore MPN:3FDE6

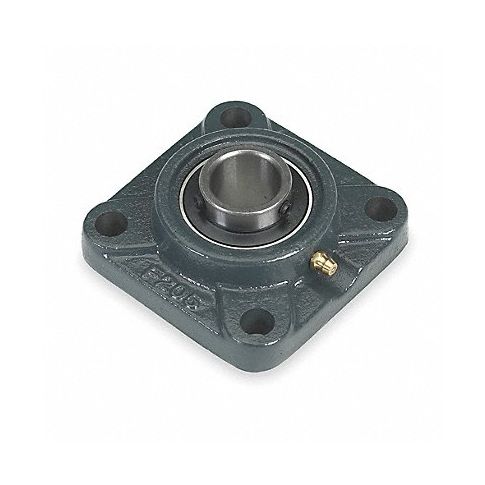

4 Bolt Flange Bearing Ball 1 3/16in Bore
The 4 Bolt Flange Bearing is designed for use in various heavy-duty applications that require high load capacities, such as agricultural and industrial equipment. Its rugged construction offers excellent resistance to wear, corrosion, and chemicals, making it durable enough to withstand even the toughest conditions. The ball bearing design provides smooth rotation and low friction, reducing energy consumption and increasing efficiency, while the four bolt flange ensures secure fastening for stable operation. With its versatile size range options, this flange mount bearing is an ideal choice for industries seeking reliable and powerful performance in their machinery.
Buy Dayton item #3FDE6 from our huge selection of Hardware Accessories to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 1/4 in
- Series Nickel Plated Standard Duty
- Bolt Size 3/8 in
- Overall Height 1 37/64 in
- Overall Width 4 1/4 in
- Overall Length 4 1/4 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 4,382 lb
- Static Load Capacity 2,517 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Nickel Plated
- Includes (2) Set Screws, Oiler Cap
- Dimension A 4 1/4 in
- Dimension C 3 1/4 in
- Dimension D 15/32 in
- Dimension F 1 37/64 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDE6
- MPN: 3FDE6
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:33am UTC
Category: Bearings
