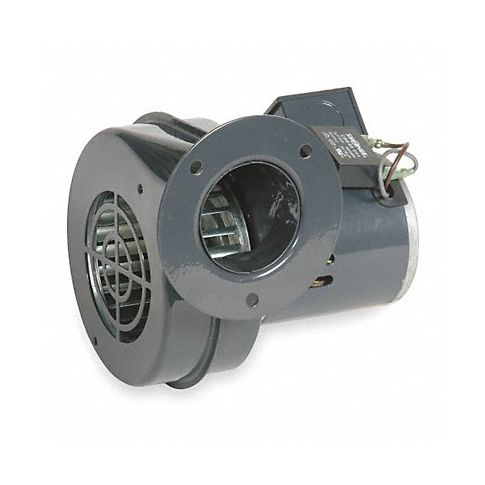

Blower 72 cfm 230V 0.18A 3100 rpm MPN:3FRE9

Acting as a direct replacement for many OEM blowers with the same physical footprint, this dynamically balanced blower provides smooth and quiet operation. Noise and vibration are held to a minimum to maintain CFM at higher static pressures. The motor has cast-aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. The min./max. operating temperature range is -20° to 104°F.

Technical Specifications

• Item OEM Blower
• Blower Outlet Shape Round
• With Flange Yes
• Blower Wheel Diameter 3 15/16 in
• Blower Wheel Width 1 7/8 in
• Blower Item OEM Specialty Blower
• Blower Voltage 230V AC
• Blower Motor Type Permanent Split Capacitor
• Blower Thermal Protection Auto
• Blower Conduit Box Yes
• CFM @ 0.000-In. SP 72
• CFM @ 0.100-In. SP 71
• CFM @ 0.200-In. SP 68
• CFM @ 0.300-In. SP 66
• CFM @ 0.400-In. SP 61
• CFM @ 0.500-In. SP 56
• Hz 50/60
• Phase 1
• Full Load Amps 0.18
• RPM 3100
• Bearing Type Ball
• Motor Enclosure Open
• Motor Insulation Class B
• Lead Length 13 in
• Max. Ambient Temp. 104 Degrees F
• Max. Inlet Temp. 104 Degrees F
• Inlet Dia. 3 1/8 in
• Outlet Dia. 2 1/8 in
• Overall Height 5 3/4 in
• Overall Width 6 1/4 in
• Overall Depth 6 7/16 in
• Wheel Type Forward Curve
• Drive Type Direct
• Mounting Position All Position
• Housing Finish Enamel
• Housing Material Rolled Steel
• Housing Color Gray
• Agency Compliance CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
• Includes Discharge Mounting Flange
• Dimension A 6 7/16 in
• Dimension B 6 1/2 in
• Dimension C 6 1/4 in
• Dimension D 2 1/4 in
• Dimension E 5 3/4 in
• Dimension F 2 1/2 in
• Dimension J 4 1/16 in
• Dimension L 2 3/8 in
• Dimension M 2 13/16 in

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 3FRE9
• MPN: 3FRE9

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: Y
• CA Prop 65 Warning Msg Scenario: 7

Classification Details

• Harmonization Code: 8414596560
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
