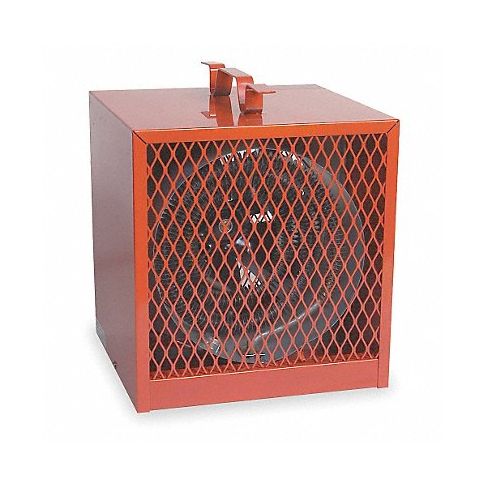

Prtbl Elct Job/Grage Heatr 15-7/8 L 240V MPN:3VU36

Portable standard electric jobsite and garage heaters have a tubular heating element for high-efficiency heating and use fan-forced air to distribute heat throughout the space. These heaters are protected with an internal thermal cutout, which shuts off the heater in the event of overheating and can be manually reset when the temperature returns to normal. These heaters have a unit-mounted thermostat.

Technical Specifications

• Item Portable Electric Jobsite & Garage Heater
• NEMA Plug Configuration 6-30P
• Overall Height 15 7/8 in
• Overall Length 15 7/8 in
• Overall Depth 11 1/2 in
• Overall Width 11 1/2 in
• Voltage 208/240V AC
• Phase 1
• Wattage Output 4.2kW/5.6kW
• Air Temp. Rise 105 Degrees F
• Housing Finish Powder Coated
• Housing Color Red
• Housing Material Steel
• Heating Method Fan Forced
• Heating Capacity 14,335/19,110 BtuH
• Amperage 20.2A/23.3A
• Air Flow 350 cfm
• Frequency 60 Hz
• Thermal Overheat Protection Automatic Reset
• Mounting Type Standing Unit
• Manufacturers Warranty Length 1 yr
• Includes Built-In Thermostat, Power Indicator Light, Steel Intake and Discharge Grilles
• Standards UL/cUL Listed

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 3VU36
• MPN: 3VU36

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: Y
• CA Prop 65 Warning Msg Scenario: 7

Classification Details

• Harmonization Code: 8516290030
• GDS Category Name: Portable Electric Jobsite and Garage Heaters
• GDS Family Name: Electric Heaters and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101819
• UNSPSC Class ID: 18
• UNSPSC Commodity Name: Heating equipment and parts and accessories
• UNSPSC Commodity ID: 19
• UNSPSC Commodity Name: Space heaters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
