Alu 42.75 Dia 41.25 H Roof Fan w.Motor MPN:7A641

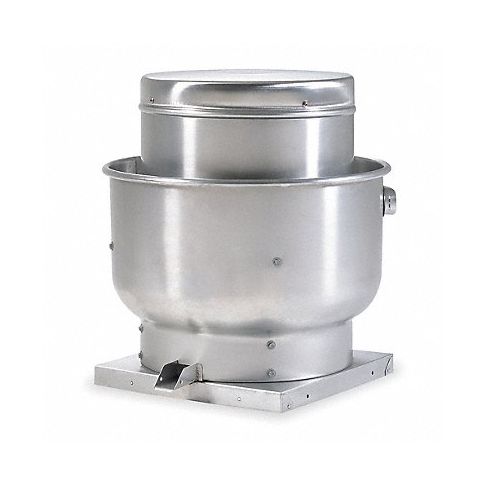

This centrifugal belt-drive upblast ventilator is designed for use in restaurants, schools, and commercial and industrial applications to exhaust contaminated air from kitchen range hoods up and away from the roof. Its 1-pc. rolled aluminum windband is fully welded to the base to create a virtually leakproof seal between the ventilator and the mounting surface. Internal steel support braces and a fully rolled windband dramatically increase the rigidity of the ventilator for greater stability during transport and installation. Motor, drive frame, and wheel are isolated from the mounting base by independent neoprene studs no metal-to-metal contact, greatly reducing overall noise. The motor compartment is isolated from the contaminated air stream and is cooled by outside air that is pulled in through an oversized breather tube by the spinning action of the wheel.

Technical Specifications

• Item Upblast Ventilator
• Drive Type - Roof Ventilators Belt Drive
• Drive Package With Motor Included Yes
• Base Size - Roof Ventilators 34 in x 34 in
• Duty Rating - Roof Ventilators Standard
• Voltage - Roof Ventilators 115 V AC/208 V AC/230 V AC
• Motor HP - Roof Ventilators 1-1/2
• Mounting Location - Roof Ventilators Roof
• Number of Speeds 1
• Wheel Dia. 24 1/2 in
• Item - Roof Ventilators Upblast Ventilator
• CFM @ 0.000-In. SP 7660
• CFM @ 0.125-In. SP 7400
• CFM @ 0.250-In. SP 7184
• CFM @ 0.375-In. SP 6947
• CFM @ 0.500-In. SP 6615
• CFM @ 0.625-In. SP 6304
• CFM @ 0.750-In. SP 6002
• CFM @ 0.875-In. SP 5656
• CFM @ 1.000-In. SP 5282
• Sones @ 0.125-In. SP @ 5 Ft. 19.0
• Sones @ 0.250-In. SP @ 5 Ft. 18.6
• Sones @ 0.500-In. SP @ 5 Ft. 17.6
• Assembled/Unassembled Unassembled
• Phase 1
• Hz 60
• Max. BHP 1.57
• RPM 845
• Base Height 1-3/4 in
• Overall Dia. 42-3/4 in
• Shaft Dia. Wheel End 1 in
• Bearing Type Regreasable Pillow Block
• Overall Height 39-1/2 in
• Max. Inlet Temp. 300 Degrees
• Housing Material Spun Aluminum
• Wheel Material Aluminum
• Speed Controllable No
• Fixed UL 762 Kitchen Roof Curb Stock No. 4HX58
• Recommended 12 In. Fixed Curb Item No. 2RB80
• Recommended 8 In. Fixed Curb Item No. 4HX42
• Recommended Damper Size (In.) 27 x 27
• Recommended Damper Stock No. 4HX68
• Adj. 12 3/8"H Roof Curb Stock No. 2ZV84
• Adj. UL 762 Kitchen Roof Curb Stock No. 4HX63
• Requires Roof Curb For New Installation
• Includes NEMA 1 Junction Box, Drive Package
• Standards UL/cUL 762, AMCA Sound and Air
• Dimension A 34 in
• Dimension B 42-3/4 in
• Dimension C 39-1/2 in
• Dimension D 25-1/2 in
