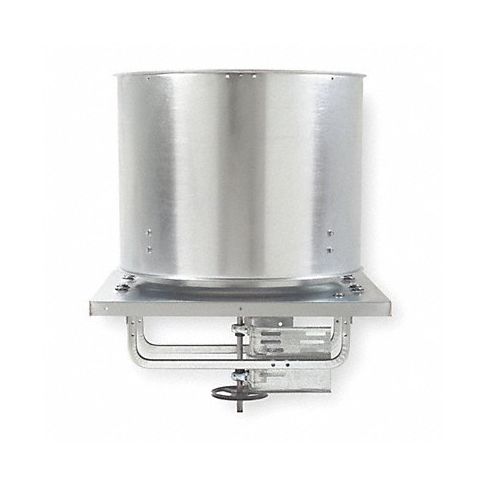

Steel 44 Dia 45 L 33 H Roof Fan w.Motor MPN:7A862

This exhaust ventilator is for use in industrial and commercial buildings, including warehouses, manufacturing facilities, foundries, and laboratories. It's highly weather-resistant, with housings constructed of heavy-gauge galvanized steel, bolted seams, and reinforced edges for added strength. Drive frames are die-formed, galvanized structural steel, providing a rigid platform for motors, shafts, bearings, and drives. Fabricated steel propellers have steeply pitched blades to generate low sound levels. Integral butterfly dampers prevent unwanted backdrafts and have magnetic latches to minimize damper flutter when not in use. Built-in lifting lugs speed installation; the windband is removable for easy inspection.

Technical Specifications

• Item Exhaust Ventilator
• Drive Type - Roof Ventilators Belt Drive
• Drive Package With Motor Included Yes
• Base Size - Roof Ventilators 44-3/4 in x 44-3/4 in
• Blade Dia. 36 in
• Voltage - Roof Ventilators 115V AC/230V AC
• Motor HP 1
• Item - Roof Ventilators Exhaust Ventilator
• Motor Enclosure Design Totally Enclosed
• Propeller Material Steel
• CFM @ 0.000-In. SP 15,252
• CFM @ 0.125-In. SP 13,326
• Sones @ 0.125-In. SP @ 5 Ft. 19.2
• Max. Inlet Temp. (Deg. F) 120
• CFM Range 9954 to 19,211
• Motor Hz 60
• Phase 1
• Bearing Type Regreasable Pillow Block
• Motor HP Range 1/2 to 2
• Max. BHP 1.20
• Fan RPM 547
• RPM Range 357 to 689
• Speed Controllable No
• Mounting Location Roof
• Base Height (In.) 1-3/4
• Overall Height (In.) 33
• Overall Dia. (In.) 46
• Shaft Dia. Sheave End (In.) 1
• Shaft Dia. Propeller End (In.) 1
• Housing Material Galvanized Steel
• Assembled/Unassembled Unassembled
• Agency Compliance UL/cUL 705 Listed
• Requires Roof Curb For New Installations
• Adj. 12 3/8"H Roof Curb Stock No. 2ZV85
• Adj. 6 3/8"H Roof Curb Stock No. 3C597
• Recommended 12 In. Fixed Curb Item No. 3AZJ3
• Dimension A 44-3/4 in
• Dimension B 38-1/2 in
• Dimension C 17-1/2 in
• Dimension D 33 in
• Dimension E 43-1/2 in

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 7A862
• MPN: 7A862

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414599080
• GDS Category Name: Axial Upblast Roof Exhaust Fans with Motor
• GDS Family Name: Roof Ventilators
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
