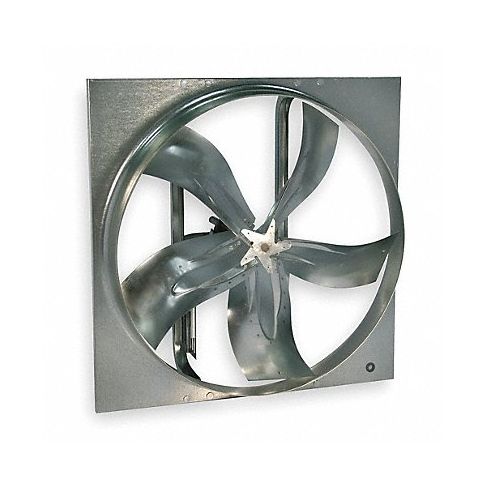

SpFn DrPg 54In Bld Dia Stl 208-230/460V MPN:7AC71

Medium-duty supply fan features 5-blade reinforced galvanized-steel propellers and heavy-duty drive-frame rails. Has variable pitch, adjustable motor pulley that helps optimize fan performance. Designed for commercial applications requiring high volumes of air at low static pressures. Air handling-quality bearings meet a minimum of L10-100,000 hours. Motors, sheaves, bushings, and belts are packed separately when complete fan with drive package is ordered. Has regreasable pillow block ball bearings. Mount supply fan vertically and for exhaust horizontal.

Technical Specifications

• Item Supply Fan w/Drive Package
• Fan Duty Rating Medium
• Motor Enclosure Totally Enclosed Fan Cooled
• Blade Dia. 54 in
• Drive Type Belt
• Exhaust/Supply Fan Item Supply Fan
• Fan Voltage 208-230/460 V AC
• Exhaust/Supply Fan Motor HP 5
• Drive Package With Motor Included Yes
• Fan RPM 507
• CFM @ 0.000-In. SP 44,535
• CFM @ 0.125-In. SP 41,763
• CFM @ 0.250-In. SP 38,990
• CFM @ 0.375-In. SP 35,068
• Sones @ 0.000-In. SP @ 5 Ft. 43
• Sones @ 0.125-In. SP @ 5 Ft. 39
• Max. BHP 5.75
• Max. Inlet Temp. 104 Degrees F
• Max. Ambient Temp. 104 Degrees F
• Hz 60
• Phase 3
• Full Load Amps 14.8-13.4/6.7
• Motor Type 3-Phase
• Motor Insulation Class F
• Motor RPM 1745
• Bearing Size 1-1/4 in
• Bearing Type Regreasable Pillow Block
• Number of Blades 5
• Blade Material Steel
• Shaft Dia. 1-1/4 in
• Outside Dia. 60 in
• Height 60 in
• Width 60 in
• Overall Depth 26-5/16 in
• Max. Depth 26-5/16 in
• Flange Width 2 in
• Mounting Position Vertical or Horizontal
• Frame Material Galvanized Steel
• Intake Guard No. 1WBU8
• Motorized Wall Galv. Shutter Stock No. 3C732
• Stock No. 3FKD5
• Venturi Clearance Dia. 55 in
• Wall Collar Stock No. 1WBW7
• Wall Housing Item No. 3FKG4
• Weatherhood No. 1WBW5
• Assembled/Unassembled Unassembled
• Standards AMCA, UL/cUL
• Includes Drive Package
