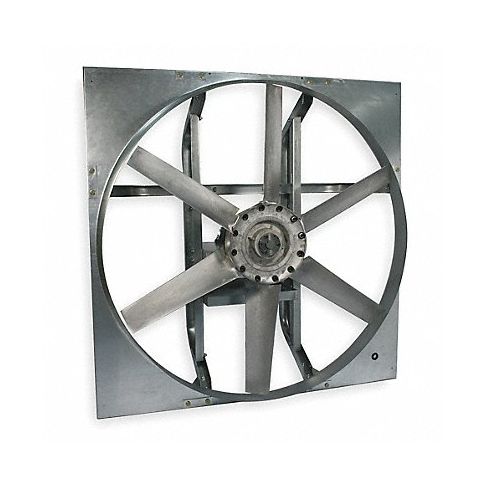

SppFn DrPkg 60InBld D Alum 208-230/460V MPN:7AC76

Technical Specifications

• Item Supply Fan w/Drive Package
• Fan Duty Rating Heavy
• Motor Enclosure Open Dripproof
• Blade Dia. 60 in
• Drive Type Belt
• Exhaust/Supply Fan Item Supply Fan
• Fan Voltage 208-230/460 V AC
• Exhaust/Supply Fan Motor HP 10
• Drive Package With Motor Included Yes
• Fan RPM 611
• CFM @ 0.000-In. SP 60,918
• CFM @ 0.125-In. SP 57,628
• CFM @ 0.250-In. SP 54,364
• CFM @ 0.375-In. SP 50,737
• CFM @ 0.500-In. SP 43,055
• Sones @ 0.000-In. SP @ 5 Ft. 54
• Sones @ 0.125-In. SP @ 5 Ft. 54
• Max. BHP 11.50
• Max. Inlet Temp. 104 Degrees F
• Max. Ambient Temp. 104 Degrees F
• Hz 60
• Phase 3
• Full Load Amps 26.7-24.2/12.1
• Motor Type 3-Phase
• Motor Insulation Class F
• Motor RPM 1740
• Bearing Size 1-3/4 in
• Bearing Type Regreasable Cast Pillow Block
• Number of Blades 6
• Blade Material Cast Aluminum
• Shaft Dia. 1-3/4 in
• Outside Dia. 66 in
• Height 66 in
• Width 66 in
• Overall Depth 35-1/2 in
• Max. Depth 35-1/2 in
• Flange Width 2 in
• Mounting Position Vertical or Horizontal
• Frame Material Galvanized Steel
• Intake Guard No. 1WBU9
• Motorized Wall Galv. Shutter Stock No. 3C733
• Stock No. 3FKD6
• Venturi Clearance Dia. 61 in
• Wall Collar Stock No. 1WBV8
• Wall Housing Item No. 3FKG5
• Weatherhood No. 1WBW6
• Assembled/Unassembled Unassembled
• Standards AMCA, UL/cUL
• Includes Drive Package

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 7AC76
• MPN: 7AC76

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414599080
• GDS Category Name: Axial Exhaust and Supply Fans with Motor
• GDS Family Name: Exhaust Fans
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Air collectors
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
