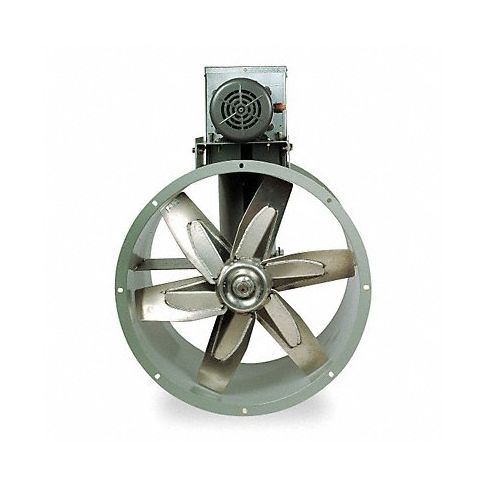

Steel 33.6 Dia 24 L 46.6 H Tubeaxial Fan MPN:7AF89
Steel 33.6 Dia 24 L 46.6 H Tubeaxial Fan
The steel axial fan boasts robust construction with large diameter design for customizable options that optimize powerful airflow handling for heavy-duty applications such as warehouses or manufacturing plants seeking efficient operation in harsh environments, reliability, and durability. Offering versatility through versatile HVAC or refrigeration systems to promote optimal indoor air quality, steel axial fans cater to diverse industries requiring superior performance from a multi-benefit product enhance any Industrial Supplies portfolio with high-quality materials built to last. Steel axial fans drive efficient operation forward in agricultural facilities, manufacturing plants, warehouses and more, providing value for money through its versatility and unbeatable reliability.
Belt-Drive Tubeaxial Fans • Mount: vertical or horizontal Permanently lubricated ball bearings Max. inlet air temp.: 200°F Max. ambient: 104°F Precision-balanced, spark-resistant aluminum blades Belt guards AMCA Type B spark-resistant propellers (99-0401-86) Optional companion flanges are sold in pairsStreamlined belt tunnel ventilates the drive compartment with air from outside the fan. Steel housing is iron phosphate-processed for rust protection; baked enamel paint finish. Factory installed cast-iron sheave is assembled on fan shaft. Motors and belts are packed separately when complete fan with drive package is ordered.Note: These fans cannot be used if the environment surrounding them is not always free of flammable gases, vapors, or liquids; combustible dust; or ignitable fibers or flyings. Installation must comply with all local and national safety codes including the National Electrical Code (NEC) and the National Fire Protection Act (NFPA). OSHA complying guards are required when fan is installed within 8 ft. of floor or working level, or within reach of personnel. Review OSHA Codes and UL Standards.
Technical Specifications
- Item Tubeaxial Fan with Motor and Drive Package
- Drive Type Belt-Drive
- Blade Dia. 30 in
- CFM @ 0.000-In. SP 10,955
- CFM @ 0.125-In. SP 10,415
- CFM @ 0.250-In. SP 9815
- CFM @ 0.500-In. SP 8359
- Sones @ 0.250-In. SP @ 5 Ft. 31
- Motor HP 1-1/2
- Max. BHP 1.40
- Fan RPM 1030
- Motor Enclosure Totally Enclosed Fan Cooled
- Phase 1
- Voltage 115/208-230
- Max. Motor Height 10 in
- Shaft Dia. 1-3/16 in
- Number of Blades 6
- Full Load Amps 15.2/8.2-7.6
- Motor Type Capacitor Start, Capacitor Run
- Max. Inlet Temp. 200 Degrees F
- Max. Ambient Temp. 104 Degrees F
- Bearing Type Ball
- Mounting Position Vertical/Horizontal
- Housing Material Steel
- Housing Finish Baked Enamel
- Blade Material Aluminum
- Hz 60
- Motor RPM 1725
- Height 46-5/8 in
- Width 33-5/8 in
- Max. Depth 24 in
- Housing Dia. w/Mtg. Flange 33-5/8 in
- Housing Dia. w/o Mtg. Flange 30-1/2 in
- Inlet Dia. 30 5/8 in
- Outlet Dia. 30 5/8 in
- Assembled/Unassembled Unassembled
- Bolt Circle Dia. 32-1/4 in
- Replacement Fan Blade Stock No. 3C418
- Companion Flange Stock No. 3C440
- Standards AMCA
- Includes Drive Package and Belt Guard
- Dimension A 33-5/8 in
- Dimension B 19-1/4 in
- Dimension C 30-1/2 in
- Dimension D 24 in
- Dimension E 7/16 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7AF89
- MPN: 7AF89
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414510010
- GDS Category Name: Tubeaxial Fans with Motor
- GDS Family Name: Tubeaxial Fans and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:46am UTC
Category: Tubeaxial Fans and Accessories
