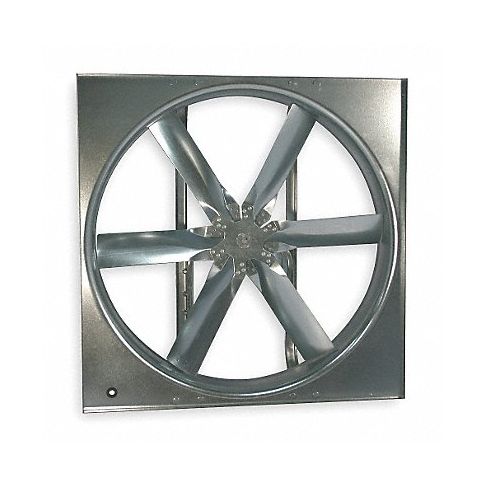

SpFan DrPkg 24In Bl G Stl 115/208-230V MPN:7CC02

Standard-duty supply fan features 6-blade galvanized-steel propellers and rigid drive-frame rails. Has variable pitch, adjustable motor pulley that helps optimize fan performance. Designed for commercial applications requiring high volumes of air at low static pressures. Air handling-quality bearings meet a minimum of L10-100,000 hours. Motors, sheaves, bushings, and belts are packed separately when complete fan with drive package is ordered. Has regreasable pilllow block ball bearings. Mount supply fan vertically and for exhaust horizontal.

Technical Specifications

• Item Supply Fan w/Drive Package
• Fan Duty Rating Standard
• Motor Enclosure Totally Enclosed
• Blade Dia. 24 in
• Drive Type Belt
• Exhaust/Supply Fan Item Supply Fan
• Fan Voltage 115/208-230 V AC
• Exhaust/Supply Fan Motor HP 1/4
• Drive Package With Motor Included Yes
• Fan RPM 923
• CFM @ 0.000-In. SP 4826
• CFM @ 0.125-In. SP 4312
• CFM @ 0.250-In. SP 3570
• Sones @ 0.000-In. SP @ 5 Ft. 17.3
• Sones @ 0.125-In. SP @ 5 Ft. 17.1
• Max. BHP 0.30
• Max. Inlet Temp. 104 Degrees F
• Max. Ambient Temp. 104 Degrees F
• Hz 60
• Phase 1
• Full Load Amps 4.2/2.1-2.1
• Motor Type Capacitor Start
• Motor Insulation Class B
• Motor RPM 1725
• Bearing Size 3/4 in
• Bearing Type Sealed Pillow Block
• Number of Blades 6
• Blade Material Steel
• Shaft Dia. 3/4 in
• Outside Dia. 28 in
• Height 28 in
• Width 28 in
• Overall Depth 18 in
• Max. Depth 18 in
• Flange Width 2 in
• Mounting Position Vertical or Horizontal
• Frame Material Galvanized Steel
• Intake Guard No. 1WBU3
• Motorized Wall Galv. Shutter Stock No. 3C727
• Stock No. 1WDC5
• Venturi Clearance Dia. 24-3/8 in
• Wall Collar Stock No. 1WBV1
• Wall Housing Item No. 3FKF8
• Weatherhood No. 1WBV9
• Assembled/Unassembled Unassembled
• Standards AMCA
• Includes Drive Package
