ExtFn DrPkg 30In BldDia Stl 115/208-230V MPN:7CC85
ExtFn DrPkg 30In BldDia Stl 115/208-230V

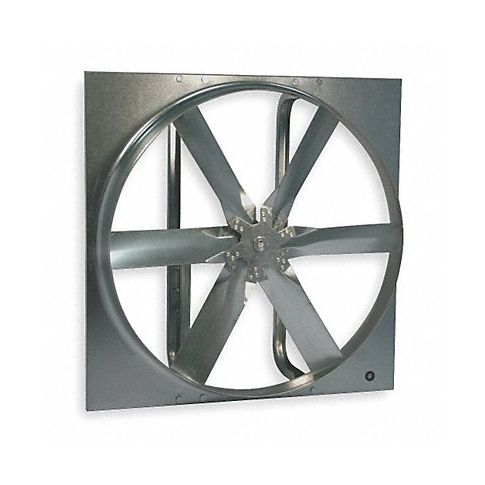

Dayton® standard-duty belt-drive 30" exhaust fan is designed to be used in commercial applications that require high volumes of air at low static pressures. The fan features a 6-blade galvanized-steel propeller, rigid drive-frame rails, and a 1-pc. motor/bearing plate. Variable pitch and adjustable motor pulley optimize fan performance. Comes complete with a drive package, which includes the appropriate motor, belt, bushings and sheaves (all packed separately) to obtain the rated performance. Mount fan vertically for exhaust operation; horizontally for supply.• Air handling-quality bearings meet a minimum of L10-100,000 hr.• UL and C-UL Listed• Unassembled
Technical Specifications
- Item Standard Duty Exhaust Fan with Motor and Drive Package
- Blade Dia. 30 in
- CFM @ 0.000-In. SP 7096
- CFM @ 0.125-In. SP 6015
- Sones @ 0.000-In. SP @ 5 Ft. 13.2
- Max. Inlet Temp. 104 Degrees F
- Drive Package With Motor Included Yes
- Fan Voltage 115/208-230 V AC
- Exhaust/Supply Fan Item Exhaust Fan
- Hz 60
- Phase 1
- Full Load Amps 4.6/2.2-2.3
- Exhaust/Supply Fan Motor HP 1/4
- Max. BHP 0.30
- Bearing Type Sealed Pillow Block
- Motor RPM 1725
- Motor Type Split-Phase
- Motor Enclosure Open Dripproof
- Motor Insulation Class B
- Fan RPM 621
- Height 34 in
- Width (In.) 34
- Max. Depth 21-1/2 in
- Venturi Clearance Dia. 30-3/8 in
- Venturi Depth 5-1/4 in
- Flange Width 34 in
- Flange Depth 1 in
- Mounting Position Horizontal or Vertical
- Frame Material Galvanized Steel
- Propeller Material Galvanized Steel
- Number of Blades 6
- Bearing Size 3/4 in
- Shaft Dia. 3/4 in
- Standards UL and C-UL Listed
- Includes Drive Package
- Aluminum Wall Shutter No. 3C309
- Fiberglass Wall Shutter No. 5C216
- Galvanized Wall Shutter No. 1C055
- Intake Guard No. 1WBU4
- Motorized Wall Galv. Shutter Stock No. 3C728
- Wall Collar Stock No. 1WBV2
- Weatherhood No. 1WBW1
- Assembled/Unassembled Unassembled
