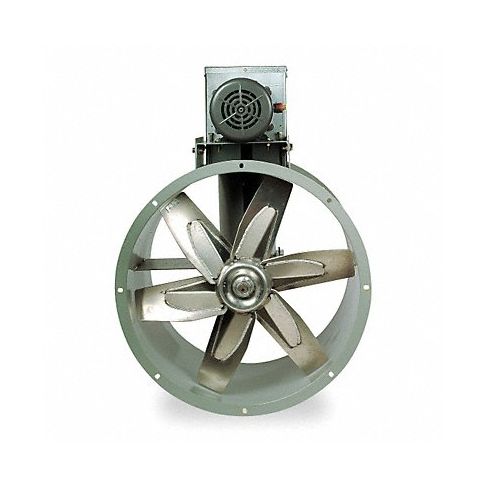

Steel 27 Dia 18 L 37.25 H Tubeaxial Fan MPN:7F960
Steel 27 Dia 18 L 37.25 H Tubeaxial Fan
The Steel 27 Diameter x 18 Width x 37.25 Height Tubeaxial Fan is an outstanding choice for industrial applications that demand precise temperature control. Its motor-driven design provides efficient cooling or heating solutions and is built with durable steel construction, ensuring reliability and longevity. The tubeaxial fan's variable speed control options tailor it to various HVAC needs in different industries such as data centers, laboratories, clean rooms, telecom providers, and more. This versatile tubeaxial fan also belongs to Tubeaxial Fans and Accessories product category making it a go-to solution for precise temperature management requirements.
Belt-Drive Tubeaxial Fans • Mount: vertical or horizontal Permanently lubricated ball bearings Max. inlet air temp.: 200°F Max. ambient: 104°F Precision-balanced, spark-resistant aluminum blades Belt guards AMCA Type B spark-resistant propellers (99-0401-86) Optional companion flanges are sold in pairsStreamlined belt tunnel ventilates the drive compartment with air from outside the fan. Steel housing is iron phosphate-processed for rust protection; baked enamel paint finish. Factory installed cast-iron sheave is assembled on fan shaft. Motors and belts are packed separately when complete fan with drive package is ordered.Note: These fans cannot be used if the environment surrounding them is not always free of flammable gases, vapors, or liquids; combustible dust; or ignitable fibers or flyings. Installation must comply with all local and national safety codes including the National Electrical Code (NEC) and the National Fire Protection Act (NFPA). OSHA complying guards are required when fan is installed within 8 ft. of floor or working level, or within reach of personnel. Review OSHA Codes and UL Standards.
Technical Specifications
- Item Tubeaxial Fan with Motor and Drive Package
- Drive Type Belt-Drive
- Blade Dia. 24 in
- CFM @ 0.000-In. SP 7085
- CFM @ 0.125-In. SP 6742
- CFM @ 0.250-In. SP 6371
- CFM @ 0.500-In. SP 5484
- CFM @ 0.750-In. SP 3164
- Sones @ 0.250-In. SP @ 5 Ft. 34
- Motor HP 1
- Max. BHP 0.98
- Fan RPM 1312
- Motor Enclosure Totally Enclosed Fan Cooled
- Phase 1
- Voltage 115/230
- Max. Motor Height 10 in
- Shaft Dia. 1 in
- Number of Blades 6
- Full Load Amps 14.0/7.0
- Motor Type Capacitor Start
- Max. Inlet Temp. 200 Degrees F
- Max. Ambient Temp. 104 Degrees F
- Bearing Type Ball
- Mounting Position Vertical/Horizontal
- Housing Material Steel
- Housing Finish Baked Enamel
- Blade Material Spark Resistant Aluminum
- Hz 60
- Motor RPM 1725
- Height 37-1/4 in
- Width 26-7/8 in
- Max. Depth 18 in
- Housing Dia. w/Mtg. Flange 27 in
- Housing Dia. w/o Mtg. Flange 24-5/16 in
- Inlet Dia. 24 7/16 in
- Outlet Dia. 24 7/16 in
- Assembled/Unassembled Unassembled
- Bolt Circle Dia. 25-3/4 in
- Replacement Fan Blade Stock No. 4C664
- Companion Flange Stock No. 3C436
- Standards AMCA
- Includes Belt guard
- Dimension A 27 in
- Dimension B 16-3/4 in
- Dimension C 24-5/16 in
- Dimension D 18 in
- Dimension E 7/16 in
