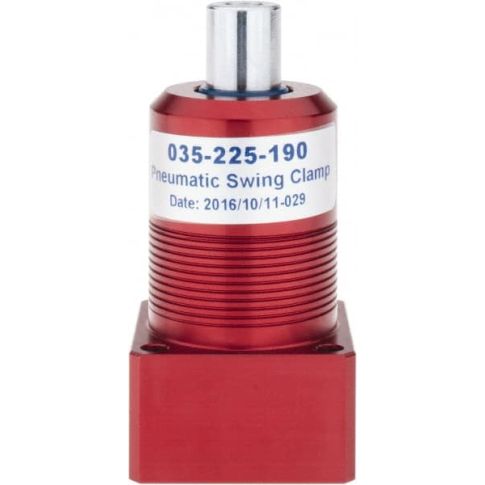

Air Swing Clamp: 26.98 lb Clamp Force, Right Hand Swing, 1.05" Stroke, Double Acting MPN:035-225-190
Air Swing Clamp: 26.98 lb Clamp Force, Right Hand Swing, 1.05" Stroke, Double Acting
Air Swing Clamp: 26.98 lb Clamp Force, Right Hand Swing, 1.05" Stroke, Double Acting 10-32 Port, 2.62" Body Length, 100 Max psi
Product Information
- : 035-225-190
- Action Type: Double
- Arm Length (Decimal Inch - 4 Decimals): 0.6000
- Arm Length (mm): 15.24
- Body Diameter (Decimal Inch): 0.9800
- Body Diameter (mm): 24.89
- Body Length: 66.55
- Body Length (Decimal Inch): 2.6200
- Body Width/Diameter (Decimal Inch): 0.9800
- Body Width/Diameter (mm): 24.89
- Clamping Force (Lb.): 26.98
- Clamping Force (N): 120.00
- Features: Several Mounting & Clamping Arm Options; Threaded Body for Through-Hole Mount
- Maximum Operating Pressure (Bar): 7.00
- Maximum Operating Pressure (Psi): 100
- Maximum Operating Pressure (Psig): 100
- Minimum Operating Pressure (Bar): 3.00
- Mount Type: Flange
- Operating Volume (cc): 9.00
- Operating Volume (Cu. In.): 0.5500
- Operation Type: Air
- Port Size: 10-32
- Rod Diameter (Decimal Inch): 0.5500
- Rod Diameter (mm): 13.97
- Swing Direction: Right Hand
- Total Stroke Distance (Decimal Inch): 1.0500
- Total Stroke Distance (mm): 26.67
- Vertical Stroke Distance (Decimal Inch): 0.5400
- Vertical Stroke Distance (mm): 13.72
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23153000
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.60
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 3:47am UTC
Category: Swing Clamps and Arms
