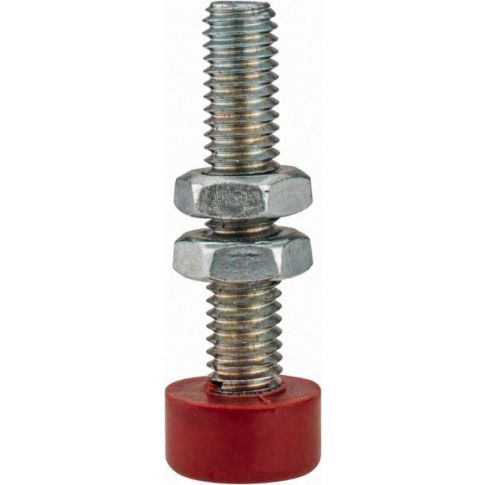

M5 Carbon Steel Cap Tip Clamp Spindle Assembly MPN:305208-M
M5 Carbon Steel Cap Tip Clamp Spindle Assembly
M5 Carbon Steel Cap Tip Clamp Spindle Assembly 24.89mm Thread Length, 28.96mm OAL, Flat Tip Cap, 0.39" Tip Surface Diam, Use with Toggle Clamps
Product Information
- : 305208-M
- Application: Toggle Clamps
- For Use With: 201 Vertical Hold Down Clamp; 305 Horizontal Hold Down Clamp; 812 Pneumatic Clamp
- Includes: Jam Nuts
- Maximum Operating Temperature: 212 F
- Minimum Operating Temperature: -22 F
- Nut Height: 0.11in; 2.79mm
- Nut Height (mm): 2.79
- Overall Length: 1.14in; 28.96mm
- Overall Length (Inch): 1.14in; 28.96mm
- Overall Length (mm): 1.14in; 28.96mm; 28.96
- Spindle Material: Carbon Steel
- Thread Length (mm): 0.98in; 24.89mm
- Thread Size: M5
- Tip Cap Hardness: 80-85A
- Tip Cap Material: Neoprene
- Tip Cap Shape: Flat
- Tip Surface Diameter (Decimal Inch): 0.3900
- Tip Surface Diameter (mm): 0.39in; 9.91mm
- Tip Type: Cap
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 31161500
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.10
- Prohibited States: AK,HI,PR
Product info last updated on January 1, 2025 1:08am UTC
Category: Clamping Accessories
