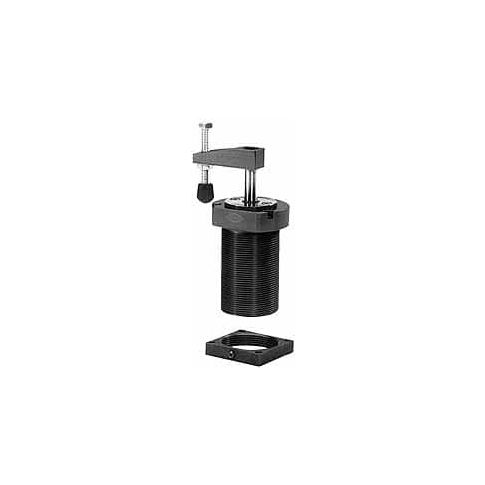

Air Swing Clamp: 89.92 lb Clamp Force, Left Hand Swing, 1.25" Stroke, Single Acting MPN:8216
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
310-89305528
Air Swing Clamp: 89.92 lb Clamp Force, Left Hand Swing, 1.25" Stroke, Single Acting
Our air swing clamp provides a reliable solution for handling and moving workpieces in a wide range of industrial applications. With a clamp force of 89.92 lb and single-acting operation, this versatile tool is suitable for both horizontal and vertical movements. The left hand swing design makes it ideal for operations where limited space is available. Upgrade your manufacturing process with our premium air swing clamp!
Air Swing Clamp: 89.92 lb Clamp Force, Left Hand Swing, 1.25" Stroke, Single Acting 1/8 NPT Port, 2-1/4-12 Body Thread, 3.3583" Body Length, 130 Max psi
Product Information
- : 8216
- Action Type: Single
- Body Diameter (Decimal Inch): 3.0000
- Body Diameter (mm): 76.20
- Body Length: 85.30
- Body Length (Decimal Inch): 3.3583
- Body Thread Size: 2-1/4-12
- Body Width/Diameter (Decimal Inch): 3.0000
- Body Width/Diameter (mm): 76.20
- Clamp Arm Compatibility: 821512 Standard Clamping Arm; 821513 Standard Clamping Arm; 821554 T-Style Clamping Arm; 821555 T-Style Clamping Arm; 821556 Blank Clamping Arm
- Clamping Force (Lb.): 89.92
- Clamping Force (N): 400.00
- F -In--: 1.1600
- Features: Threaded Body Mounted in a Tapped Hole
- Includes: Clamping Arm; Spindle
- Maximum Operating Pressure (Psi): 130
- Minimum Operating Pressure (Bar): 3.00
- Mount Type: Threaded Body
- No Description: 3.0000
- Operating Volume (cc): 32.94 (Clamp); 37.03 (Unclamp)
- Operating Volume (Cu. In.): 2.0100 (Clamp); 2.2600 (Unclamp)
- Operation Type: Air
- Overall Open Length (Decimal Inch): 6.3600
- Port Size: 1/8 NPT
- Rod Diameter (Decimal Inch): 0.5000
- Rod Diameter (mm): 12.70
- Swing Direction: Left Hand
- Tapped Depth: 0.3800
- Total Stroke Distance (Decimal Inch): 1.2500
- Total Stroke Distance (mm): 31.75
- Vertical Stroke Distance (Decimal Inch): 0.5000
- Vertical Stroke Distance (Inch): 1/2
- Vertical Stroke Distance (mm): 12.70
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23153000
- UPC: 697437582164
- CA Restricted (Prop 65): Unknown
- Package Weight: 2.20
- Prohibited States: AK,HI,PR
Product info last updated on January 1, 2025 12:28am UTC
Category: Swing Clamps and Arms
