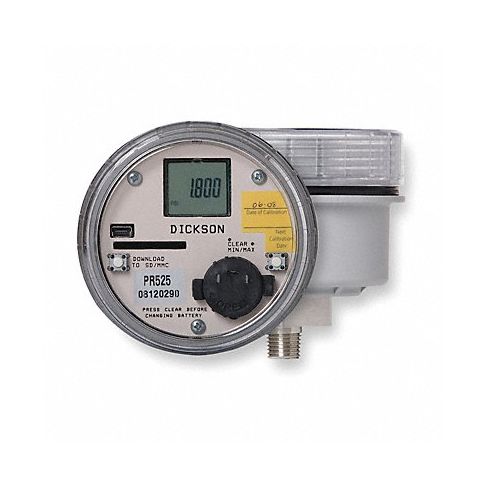

K4645 Data Logger Pressure Range 0 to 500 PSI MPN:PR525

Measure water, gas, or oil pressure with this 64 KB Storage Water-resistant IP68 logger. It displays 7 units of measure, along with low battery, and min./max. Data can be downloaded via USB cable or flash card. 1/4" NPT connection.

Technical Specifications

• Item Data Logger
• Type Pressure
• Pressure Range 0 to 500 psi
• Accuracy +/-1% of Full Scale
• Battery Life 6 mo @ 5 min Sample Rate
• Sample Point Storage 64,000
• Remote Probe No
• Digital Readout Yes
• AC Adapter No
• Waterproof Yes
• Connection Size 1.11" Hex, 1/4" NPT Thread
• Time Intervals 1 second to 24 hour intervals, in 1 second increments
• Alarm No
• Height (In.) 2.8 in
• Dia. 3.4 in
• Software Required 4LB62
• Special Features Built in Diaphragm Seal, Displays 7 Different Pressure Units, Saves Data to Optional Flash Card
• Interface USB
• Includes (1) DL123 Lithium Battery
• Manufacturers Warranty Length 1 yr

Manufacturer Details

• Manufacturer: Dickson
• Condensed Mfg Number: PR525
• MPN: PR525

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026204000
• GDS Category Name: Nonelectrical Properties Data Loggers
• GDS Family Name: Data Recording
• GDS Segment Name: Test Instruments
• UNSPSC: 41112405
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Pressure measuring and control instruments
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Pressure or vacuum recorders
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
