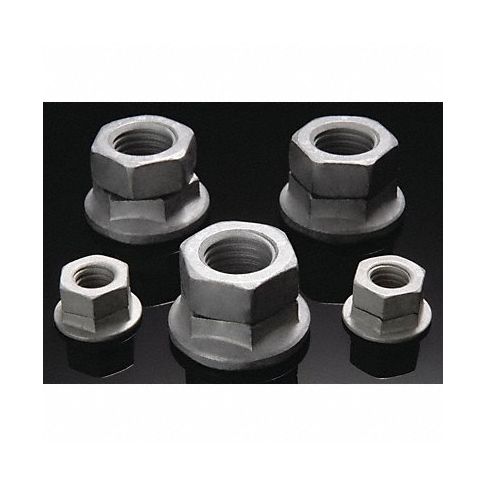

2-Piece Wedge Znc Stl M12-1.75 25mm 50PK MPN:NMC 205-01-565

Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.

Technical Specifications

• Item Lock Nut
• Nut Style Wedge Lock Nut
• System of Measurement Metric
• Basic Material Steel
• Fastener Finish Zinc Plated
• Fastener Thread Direction Right Hand
• Fastener Thread Type Metric
• Dia./Thread Size M12-1.75
• Material Grade Class 10
• Width Across Flats 19.0 mm
• Nut Height 17.5 mm
• Flange Dia. 25.0 mm

Manufacturer Details

• Manufacturer: Disc-Lock
• Condensed Mfg Number: NMC20501565
• MPN: NMC 205-01-565

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: TW
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 7318220000
• GDS Category Name: Lock Nuts with Integrated Washer
• GDS Family Name: Nuts
• GDS Segment Name: Fasteners
• UNSPSC: 31161716
• UNSPSC Class ID: 17
• UNSPSC Commodity Name: Nuts
• UNSPSC Commodity ID: 16
• UNSPSC Commodity Name: Locknuts
• UNSPSC Family ID: 16
• UNSPSC Family Name: Hardware
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
