2-Piece Wedge Znc Stl 3/8 -24 0.787in 50 MPN:NSF 203-01-565
2-Piece Wedge Znc Stl 3/8 -24 0.787in 50
Disc-Lock locking nuts offer superior performance in high-stress and vibration-sensitive areas. These interlocking cams form a secure, reusable assembly that maintains clamp load under shock and vibration. Perfect for safety-critical applications, the proprietary design increases joint integrity, protecting against loosening. Easily installed and removed with standard equipment, these wedge lock nuts can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts. Ensure the best possible protection for your joints with Disc-Lock locking nuts.
Top product features:
- High stress resistance: These locking nuts are designed for high-stress applications and can maintain their clamp load under vibration and shock.
- Vibration sensitivity: The proprietary design makes them ideal for use in safety-critical applications where vibration sensitivity is important.
- Reusability: These wedge lock nuts are easy to install and remove with standard equipment, making them a reusable solution for your needs.
Top product applications:
- Aerospace industry: These locking nuts can be used in high-stress and vibration-sensitive areas to maintain clamp load and protect joint integrity.
- Automotive industry: They are suitable for use in safety-critical applications such as braking systems or suspensions, where vibration sensitivity is crucial.
- Machine building and heavy equipment: They can be used in environments subject to shock and vibration to prevent loosening and maintain tight connections.

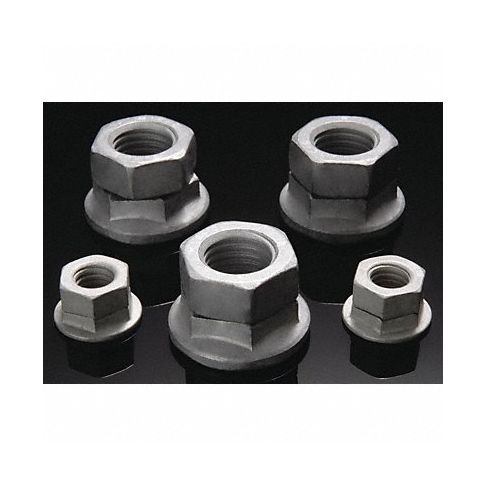

Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.
Technical Specifications
- Item Lock Nut
- Nut Style Wedge Lock Nut
- System of Measurement Inch
- Basic Material Steel
- Fastener Finish Zinc Plated
- Fastener Thread Direction Right Hand
- Fastener Thread Type UNF (Fine)
- Dia./Thread Size 3/8"-24
- Material Grade Grade 8
- Flange Dia. 0.787 in
Manufacturer Details
- Manufacturer: Disc-Lock
- Condensed Mfg Number: NSF20301565
- MPN: NSF 203-01-565
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: TW
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318220000
- GDS Category Name: Lock Nuts with Integrated Washer
- GDS Family Name: Nuts
- GDS Segment Name: Fasteners
- UNSPSC: 31161716
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Nuts
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Locknuts
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
