2-Piece Wedge Znc Stl 9/16 -18 1.23in 50 MPN:NSF 206-01-565
2-Piece Wedge Znc Stl 9/16 -18 1.23in 50
The 2-piece wedge zinc steel hex bolt assemblies come in 9/16-18, measuring 1.23 inches overall length featuring a black finish that prevents rusting while resists stripping screwheads enhancing theft resistance security in high risk environments like construction sites. Its tamperproof feature ensures that it cannot be removed with basic tools preventing vandalism reducing liabilities while safeguarding valuable equipment infrastructure assets within various industries such as military automotive aerospace electronics securing bolted joints fastening systems requiring theft prevention and resistant properties to the elements.

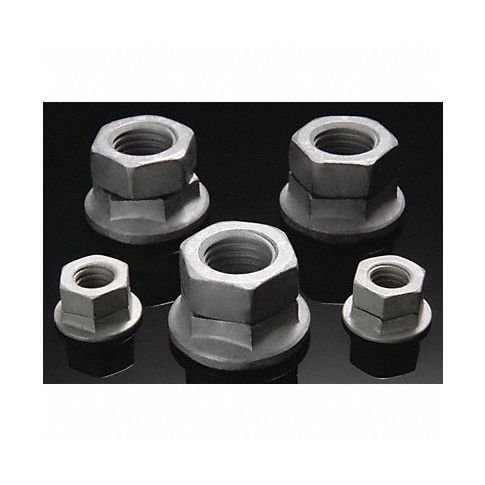

Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.
Technical Specifications
- Item Lock Nut
- Nut Style Wedge Lock Nut
- System of Measurement Inch
- Basic Material Steel
- Fastener Finish Zinc Plated
- Fastener Thread Direction Right Hand
- Fastener Thread Type UNF (Fine)
- Dia./Thread Size 9/16"-18
- Material Grade Grade 8
- Flange Dia. 1.23 in
Manufacturer Details
- Manufacturer: Disc-Lock
- Condensed Mfg Number: NSF20601565
- MPN: NSF 206-01-565
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: TW
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318220000
- GDS Category Name: Lock Nuts with Integrated Washer
- GDS Family Name: Nuts
- GDS Segment Name: Fasteners
- UNSPSC: 31161716
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Nuts
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Locknuts
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC
Category: Nuts
