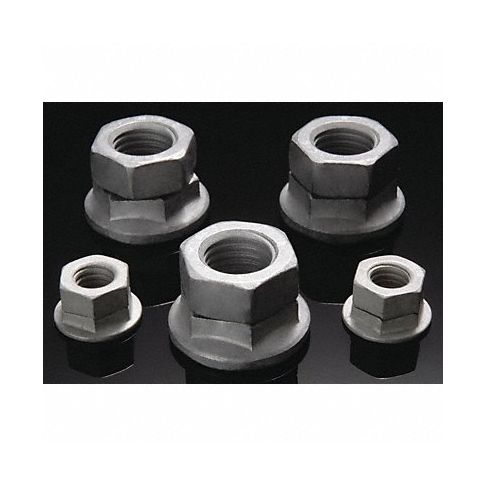

2-Piece Wedge Znc Stl 5/8 -18 1.23 PK50 MPN:NSF 207-01-565
Disc-Lock locking nuts are designed to offer maximum reliability in high-stress, vibration-sensitive environments and safety-critical applications. The innovative design uses interlocking cams that create a free-spinning assembly that becomes tighter under shock and vibration. The top threaded hexagon nut features cams underneath and a pilot that retains the washer, while the bottom hex flange washer has a smooth bearing surface and cams on top. This unique design prevents loosening of fasteners due to vibration or shock, ensuring optimal performance and protection against joint integrity issues. These nuts can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts, making them suitable for a wide range of applications across various industries, including automotive, aerospace, construction, and machinery manufacturing. Say goodbye to the risks of loose fasteners with Disc-Lock locking nuts and experience unparalleled safety and reliability today.
Top product features:
- Shock and Vibration Resistance
- High Stress-Tolerant Design
- Reusable Locking Nut Assembly
Top product applications:
- Automotive Manufacturing and Assembly
- Aerospace and Defense Industry
- Construction and Machinery Manufacturing
Technical Specifications
- Item Lock Nut
- Nut Style Wedge Lock Nut
- System of Measurement Inch
- Basic Material Steel
- Fastener Finish Zinc Plated
- Fastener Thread Direction Right Hand
- Fastener Thread Type UNF (Fine)
- Dia./Thread Size 5/8"-18
- Material Grade Grade 8
- Flange Dia. 1.23 in
Manufacturer Details
- Manufacturer: Disc-Lock
- Condensed Mfg Number: NSF20701565
- MPN: NSF 207-01-565
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: TW
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318220000
- GDS Category Name: Lock Nuts with Integrated Washer
- GDS Family Name: Nuts
- GDS Segment Name: Fasteners
- UNSPSC: 31161716
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Nuts
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Locknuts
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
