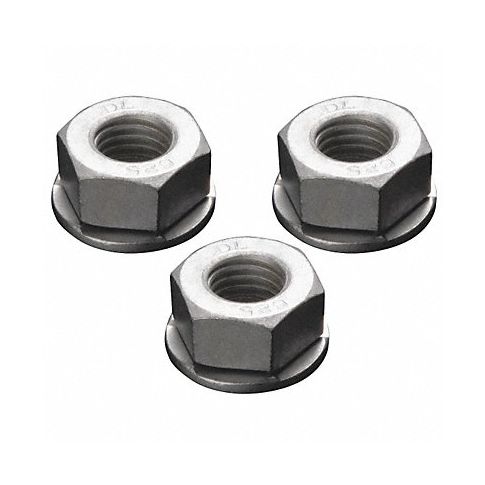

HvyHx w/Wshr Znc Stl 1/2 -13 1.045in 50 MPN:DLTCN-500
HvyHx w/Wshr Znc Stl 1/2 -13 1.045in 50
The Disc-Lock Heavy Hex Lock Nut with Washer Zinc is an essential component for high-stress applications requiring a secure and durable fastening solution. Engineered to provide exceptional strength and vibration resistance, this locking nut maintains the bolted clamp load in the face of shock or vibration, preventing loosening and ensuring joint integrity. Its 1-piece construction eliminates the need for a separate washer, while its reusable design makes it ideal for a wide range of applications across various industries. Offered in imperial dimensions with Grade 5 (Class 8.8) or stronger bolts compatibility, the Disc-Lock Heavy Hex Lock Nut with Washer Zinc delivers superior performance and reliability for demanding fastening tasks.
Top product features:
- Proprietary locking nut design for vibration-resistant fastening
- Interlocking cams for tightening and maintaining bolted clamp load
- Reusable construction for cost-effective use in various applications
Top product applications:
- Automotive and mechanical equipment fastening in high-stress, vibration-sensitive areas
- Aerospace and defense industry safety-critical bolting applications
- Industrial manufacturing and construction for robust fastening in demanding environments
Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.
Technical Specifications
- Item Lock Nut
- Nut Style Heavy Hex Lock Nut
- System of Measurement Inch
- Basic Material Steel
- Fastener Finish Zinc Plated
- Fastener Thread Direction Right Hand
- Fastener Thread Type UNC (Coarse)
- Dia./Thread Size 1/2"-13
- Material Grade Grade 8
- Flange Dia. 1.045 in
Manufacturer Details
- Manufacturer: Disc-Lock
- Condensed Mfg Number: DLTCN500
- MPN: DLTCN-500
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: TW
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318220000
- GDS Category Name: Lock Nuts with Integrated Washer
- GDS Family Name: Nuts
- GDS Segment Name: Fasteners
- UNSPSC: 31161716
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Nuts
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Locknuts
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: Nuts
