HvyHx w/Wshr Znc Stl 5/8 -11 1.265in 50 MPN:DLTCN-625
HvyHx w/Wshr Znc Stl 5/8 -11 1.265in 50

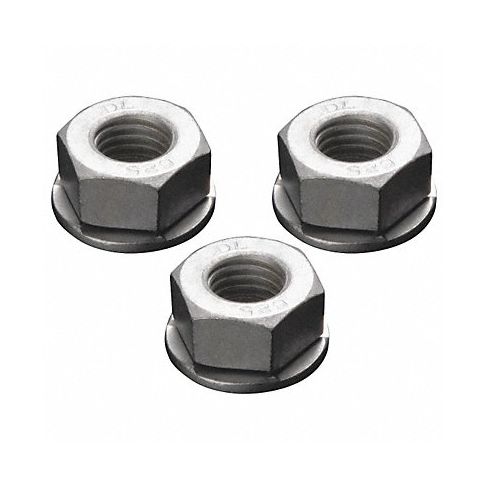

Disc-Lock's Heavy Hex Zinc Plated Lock Nut with washer is a reliable choice for high-stress fastening applications that require maximum clamp load maintenance. This lock nut gets tighter under shock and vibration, making it perfect for safety-critical areas. Its unique interlocking cams make it easier to install and remove with standard equipment while maintaining reusability. Made from grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts compatible materials, this lock nut delivers exceptional strength and durability for various industries such as automotive, aerospace, marine, construction, and more.
Top product features:
- Interlocking cams for maximum clamp load maintenance
- Compatibility with various bolts for versatility
- Smooth bearing surface for easy installation and removal
Top product applications:
- Aerospace industries for aircraft assembly and maintenance
- Construction for securing structures under high stress and vibration conditions
- Automotive manufacturing for producing strong and durable fasteners
Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.
Technical Specifications
- Item Lock Nut
- Nut Style Heavy Hex Lock Nut
- System of Measurement Inch
- Basic Material Steel
- Fastener Finish Zinc Plated
- Fastener Thread Direction Right Hand
- Fastener Thread Type UNC (Coarse)
- Dia./Thread Size 5/8"-11
- Material Grade Grade 8
- Flange Dia. 1.265 in
Manufacturer Details
- Manufacturer: Disc-Lock
- Condensed Mfg Number: DLTCN625
- MPN: DLTCN-625
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: TW
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318220000
- GDS Category Name: Lock Nuts with Integrated Washer
- GDS Family Name: Nuts
- GDS Segment Name: Fasteners
- UNSPSC: 31161716
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Nuts
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Locknuts
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
