3Pc Safe Wheel Znc Stl 3/4 -16 1.88in 10 MPN:NSF 2080 S DAC
3Pc Safe Wheel Znc Stl 3/4 -16 1.88in 10
Introducing the Disc-Lock Locking Nut - the ultimate solution for secure fastening in high-stress environments! This innovative nut tightens under shock and vibration to prevent loosening, making it ideal for safety-critical applications. The interlocking cams form a durable, free-spinning 1-pc. locking nut assembly that ensures maximum clamp load maintenance. With a flange for added stability and ease of use with standard equipment, Disc-Lock Locking Nuts are perfect for various industries like automotive, machinery, construction, and more. Don't compromise on safety - choose Disc-Lock Locking Nuts for unbeatable security!
Top product features:
- Shock and vibration resistance for secure fastening in high-stress environments
- Interlocking cams form a durable, free-spinning 1-pc. locking nut assembly
- Flange provides added stability and ease of use with standard equipment
Top product applications:
- Automotive: Use in high-stress environments like engines, suspension systems, and wheel assemblies for secure fastening
- Machinery: Use in safety-critical applications where shock and vibration resistance is essential, such as construction equipment, agricultural machinery, and heavy industrial machines
- Construction: Use in critical structural elements like beams, columns, and support brackets to ensure stable and secure fastening in high-stress conditions

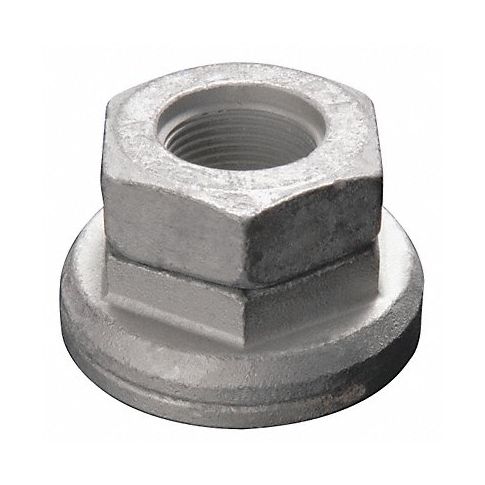

Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.
Technical Specifications
- Item Lock Nut
- Nut Style Safety Wheel Lock Nut
- System of Measurement Inch
- Basic Material Steel
- Fastener Finish Zinc Plated
- Fastener Thread Direction Right Hand
- Fastener Thread Type UNF (Fine)
- Dia./Thread Size 3/4"-16
- Material Grade Grade 8
- Nut Height 1 9/64 in
- Flange Dia. 1.88 in
Manufacturer Details
- Manufacturer: Disc-Lock
- Condensed Mfg Number: NSF2080SDAC
- MPN: NSF 2080 S DAC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: TW
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318220000
- GDS Category Name: Lock Nuts with Integrated Washer
- GDS Family Name: Nuts
- GDS Segment Name: Fasteners
- UNSPSC: 31161716
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Nuts
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Locknuts
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
