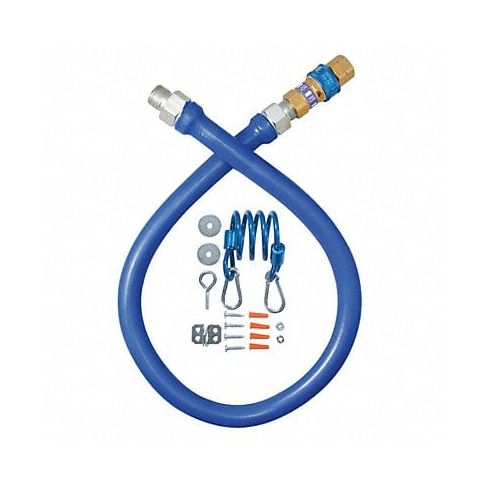

Gas Safety Kit 1 ID x 36 L MPN:16100BPQR36

Moveable foodservice connectors are used to connect a gas line to mobile, caster-mounted commercial cooking equipment that may frequently be moved small distances for maintenance, positioning, or cleaning. The hose is made from corrosion-resistant stainless steel, and it has an antimicrobial outer coating that inhibits bacteria, mold, and mildew from growing on it. The hose has fittings on both ends for connecting to gas lines and equipment, and the fittings can rotate 360° to prevent kinking and minimize stress at the connection points when the equipment is moved.

Gas connectors (also known as gas line connectors) are primarily used to hook up gas-powered appliances to a gas line or source in order to feed gas to the appliance. These hose assemblies consist of lengths of hose with fittings installed on both ends for making connections to equipment.

Technical Specifications

• Item Gas Safety Kit
• Hose Inside Dia. 1 in
• Hose Outside Dia. 1 1/4 in
• Hose Length 36 in
• Hose Color Gray
• Hose Tube Material 304 Stainless Steel
• Hose Cover Material PVC
• Max. Working Pressure @ 70 F 0.5 psi
• Temp. Range -40 Degrees to 350 Degrees F
• Standards ANSI Z21.15, ANSI Z21.18/CSA 9.1, ANSI Z21.24, ANSI Z21.41, ANSI Z21.69, ANSI Z21.90, ANSI/UL 567, CSA 6.16, CSA 6.24. CSA 6.9, CSA 6.3
• Hose Fitting A Material 304 Stainless Steel
• Hose Fitting B Material 304 Stainless Steel
• Hose Fitting A Type FNPT
• Hose Fitting B Type MNPT
• Hose Fitting A Size 1 in
• Hose Fitting B Size 1 in
• Hose Configuration Coupled Assembly
• For Use With Moveable Commercial Cooking Equipment
• BTU Capacity 379,000

Manufacturer Details

• Manufacturer: Dormont
• Condensed Mfg Number: 16100BPQR36
• MPN: 16100BPQR36

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8307103000
• GDS Category Name: Gas Connectors
• GDS Family Name: Gas and Water Line Connectors
• GDS Segment Name: Plumbing
• UNSPSC: 40141720
• UNSPSC Class ID: 17
• UNSPSC Commodity Name: Hardware and fittings
• UNSPSC Commodity ID: 20
• UNSPSC Commodity Name: Plumbing connectors
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
