Well Water Level Gauge 0 to 390 ft MPN:CA566

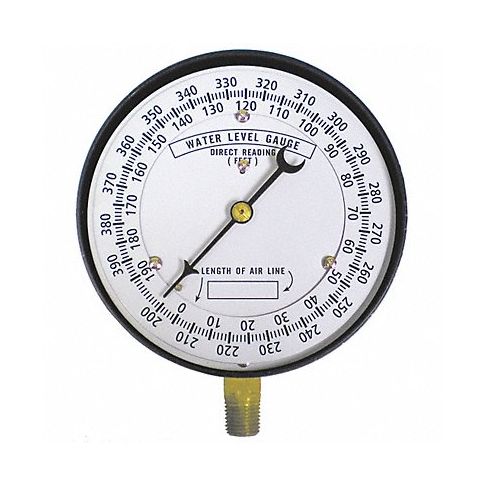

Well Water Level Gauge 0 to 390 ft.
The Duro Well Water Level Gauge is an essential tool for measuring water levels in wells accurately. This durable gauge comes with a steel case construction that can resist impact in demanding applications, making it ideal for professionals working in tough conditions. With a range of 0 to 390 ft and easy-to-read dial markings, the Duro Well Water Level Gauge offers precise measurements. It's perfect for test and measurement applications, helping users monitor water levels efficiently. Its brass/bronze wetted parts provide corrosion resistance and durability, ensuring consistent accuracy over time. Get the Duro Well Water Level Gauge today and enjoy hassle-free well management!
Top product features:
- Steel case construction for impact resistance.
- Precise measurements with a range of 0 to 390 ft.
- Brass/bronze wetted parts for corrosion resistance.
Top product applications:
- Measure water levels in wells.
- Monitor groundwater levels in agricultural fields.
- Verify the depth of water pipelines during construction.
This gauge features steel case construction to resist impact in demanding applications.
Technical Specifications
- Item Well Water Level Gauge
- Gauge Application Test
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Steel
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units ft H2O
- Gauge Primary Range Values 0 to 390
- Gauge Accuracy +/-2.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 1
- Gauge Case Material Steel
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Phosphor Bronze
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Calibration Certificate Included No
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Duro
- Condensed Mfg Number: CA566
- MPN: CA566
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Altitude Pressure Gauges
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112401
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Depth gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 11:50am UTC
Category: Pressure and Vacuum Measuring
