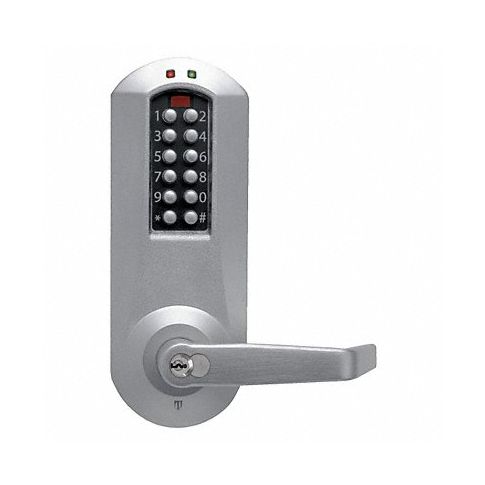

Electronic Lock Satin Chrome 12 Button MPN:E5067SWL62641

Technical Specifications

• Item Electronic Keyless Lock
• Function Entry with Key Override
• Access Method Keypad
• Mounting Style Mortise
• Lock Material Solid Cast
• Finish Satin Chrome
• Series E5000
• Handle Type Lever
• Door Thickness 1-3/4 in to 2-1/4 in
• Key Override Options Schlage Interchangeable Core
• Hand Nonhanded
• Outside Height 8 7/8 in
• Outside Width 3 3/8 in
• Outside Depth 3 13/16 in
• Inside Height 8 7/8 in
• Inside Width 3 3/16 in
• Inside Depth 2 1/8 in
• Latch Length 1 in
• Latch Front Size 1 in
• Backset 2-3/4 in
• Keypad Material Solid Metal
• Number of Keys 12
• Timed Entry Allowance 2 to 20 sec
• Power Source (4) AA Batteries
• Battery Life Up to 180,000 Cycles
• Operating Temp. Range -31 Degrees to 130 Degrees F Housing, -31 Degrees to 151 Degrees F Front Housing
• Event Audit Trail 9000
• Max. User Codes 100
• Max. Proximity Range At Lock
• Fire Rating 3 hr
• ADA Compliant Yes
• Grade 1
• Standards UL/ULC Fire Door Rating for in A in Labeled Doors, ANSI/BHMA A156.2, Grade 1 Certification
• Weather Resistant Yes
• For Use With Schlage R/C
• Electrical/Mechanical Electrical

Manufacturer Details

• Manufacturer: E-Plex
• Condensed Mfg Number: E5067SWL62641
• MPN: E5067SWL62641

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8301406030
• GDS Category Name: Electronic Keyless Access Control Locks
• GDS Family Name: Keyless Access Locks
• GDS Segment Name: Hardware
• UNSPSC: 46171619
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Surveillance and detection equipment
• UNSPSC Commodity ID: 19
• UNSPSC Commodity Name: Security or access control systems
• UNSPSC Family ID: 17
• UNSPSC Family Name: Security surveillance and detection
• UNSPSC Segment ID: 46
• UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies

Shipping Details

• Not For Sale In: HI AK PR
