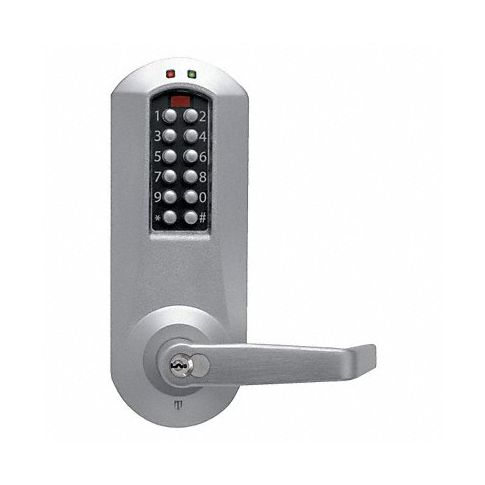

Electronic Lock Satin Chrome 12 Button MPN:E5066SWL62641
Electronic Lock Satin Chrome 12 Button
Buy E-Plex item #E5066SWL62641 from our huge selection of Locks & Keys to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item Electronic Keyless Lock
- Function Entry with Key Override
- Access Method Keypad
- Mounting Style Mortise
- Lock Material Solid Cast
- Finish Satin Chrome
- Series E5000
- Handle Type Lever
- Door Thickness 1-3/4 in to 2-1/4 in
- Key Override Options Schlage Interchangeable Core
- Hand Nonhanded
- Outside Height 8 7/8 in
- Outside Width 3 3/8 in
- Outside Depth 3 13/16 in
- Inside Height 8 7/8 in
- Inside Width 3 3/16 in
- Inside Depth 2 1/8 in
- Latch Length 3/4 in
- Latch Front Size 3/4 in
- Backset 2-3/4 in
- Keypad Material Solid Metal
- Number of Keys 12
- Timed Entry Allowance 2 to 20 sec
- Power Source (4) AA Batteries
- Battery Life Up to180,000 Cycles
- Operating Temp. Range -31 Degrees to 130 Degrees F Housing, -31 Degrees to 151 Degrees F Front Housing
- Event Audit Trail 9000
- Max. User Codes 100
- Max. Proximity Range At Lock
- Fire Rating 3 hr
- ADA Compliant Yes
- Grade 1
- Standards UL/ULC Fire Door Rating for in A in Labeled Doors, ANSI/BHMA A156.2, Grade 1 Certification
- Weather Resistant Yes
- For Use With Schlage R/C
- Includes Kaba 1599 6-pin cylinder (prepped to Kaba 90 or Schlage "C" Keyway, keyed different) and tailpieces
- Electrical/Mechanical Electrical
Manufacturer Details
- Manufacturer: E-Plex
- Condensed Mfg Number: E5066SWL62641
- MPN: E5066SWL62641
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8301406030
- GDS Category Name: Electronic Keyless Access Control Locks
- GDS Family Name: Keyless Access Locks
- GDS Segment Name: Hardware
- UNSPSC: 46171619
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Surveillance and detection equipment
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Security or access control systems
- UNSPSC Family ID: 17
- UNSPSC Family Name: Security surveillance and detection
- UNSPSC Segment ID: 46
- UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:30pm UTC
Category: Keyless Access Locks
