Exair 6063 Compressed Air Operated Line Vac™ Only 6063 Stainless Steel 33 SCFM 1-1/2" Hose 6063
Exair 6063 Compressed Air Operated Line Vac™ Only 6063 Stainless Steel 33 SCFM 1-1/2" Hose 6063

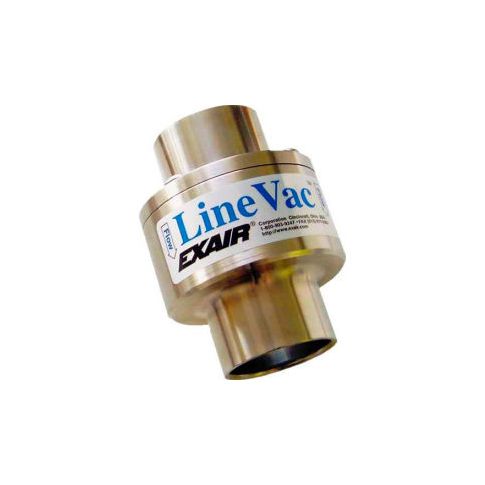

EXAIR® Compressed Air Operated Line Vac™ Only 6063, Stainless Steel, 33 SCFM, 1-1/2" Hose
EXAIR®'s Compressed Air Operated Line Vac™ connects to standard hose or tube to create a powerful in-line conveyor. The compact design features large throat diameters for maximum throughput capability. Line Vac conveyors are ideal for moving large volumes of material over long distances. A small amount of compressed air is injected through directed nozzles to produce a vacuum on one end and high output flows on the other, with instantaneous response. The material flow rate is easily controlled with a pressure regulator. No moving parts or electricity assures maintenance free operation. Line Vacs are available in aluminum and stainless steel.
Applications:
EXAIR®'s Compressed Air Operated Line Vac™ connects to standard hose or tube to create a powerful in-line conveyor. The compact design features large throat diameters for maximum throughput capability. Line Vac conveyors are ideal for moving large volumes of material over long distances. A small amount of compressed air is injected through directed nozzles to produce a vacuum on one end and high output flows on the other, with instantaneous response. The material flow rate is easily controlled with a pressure regulator. No moving parts or electricity assures maintenance free operation. Line Vacs are available in aluminum and stainless steel.
Applications:
- Hopper Loading
- Fiber Tensioning
- Material Conveying
- Waste/Trim Removal
- Chip Removal
- Part Transfer
- Filling Operations
- Compact
- Quiet
- No Moving Parts
- Fits Standard Hose Or Tube
- Aluminum Or Stainless Steel
- High Throughput Capability
Product Specifications
- LENGTH INCHES4.38
- BRANDExair
- CONSTRUCTIONStainless Steel
- MANUFACTURERS PART NUMBER6063
- PSI250
- WEIGHT LBS2.65
- CFM33
- @ PSIG80
- DIAMETER2.75
- CERTIFICATIONSCE Compliant
- HOSE ID INCHES1.5
- MALE/FEMALE THREADFemale
- THROAT DIA. INCHES1.25
- PACKAGE TYPEBox
- AIR INLET NPT3/8"
Additional Information
- UNSPSC: 24101714
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 7.00
- Package Width: 7.00
- Package Height: 5.00
- Package Weight: 3.00
Product info last updated on May 28, 2024 1:50pm UTC
