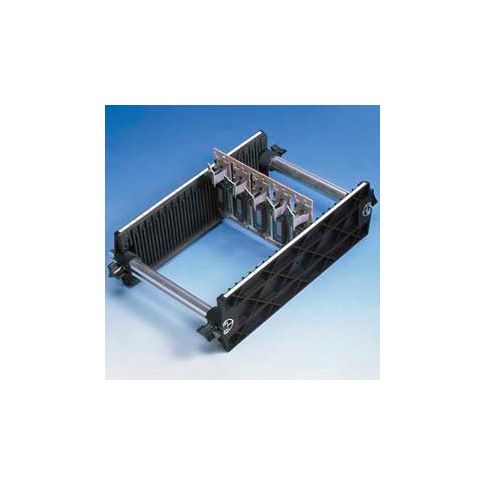

Fancort Karry-All Model 76 Adjustable Conductive Small PCB Rack 15"W x 13-1/4"D x 4"H 76-14-4CP
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-4820B77
Fancort Karry-All Model 76 Adjustable Conductive Small PCB Rack 15""W x 13-1/4""D x 4""H 76-14-4CP
Fancort Karry-All Model 76 Adjustable Conductive Small PCB Rack, 15"W x 13-1/4"D x 4"H
The Fancort Karry-All Model 76 Adjustable Conductive PCB Rack is an adjustable rack that hold boards securely on two opposite sides for maximum protection during transport and storage, either horizontally or vertically. Three different models of Karry-Alls are featured, each with a different injection-molded card guide to handle small, medium, large, very large, and hard-to-hold boards. All the card guides are molded in tough, reinforced conductive material that meets Mil Spec #B-81705-B for static discharge. The standard Karry-Alls can tolerate solvents and temperatures to 185°F. They are very easy to set up with rigid tubular aluminum extrusions and non-rotating nuts with large conductive plastic thumbscrews that lock into the extrusions.
Features
The Fancort Karry-All Model 76 Adjustable Conductive PCB Rack is an adjustable rack that hold boards securely on two opposite sides for maximum protection during transport and storage, either horizontally or vertically. Three different models of Karry-Alls are featured, each with a different injection-molded card guide to handle small, medium, large, very large, and hard-to-hold boards. All the card guides are molded in tough, reinforced conductive material that meets Mil Spec #B-81705-B for static discharge. The standard Karry-Alls can tolerate solvents and temperatures to 185°F. They are very easy to set up with rigid tubular aluminum extrusions and non-rotating nuts with large conductive plastic thumbscrews that lock into the extrusions.
Features
- 39 numbered slots measure 0.135" W x 0.135" D on a 0.260" pitch
- Easy board insertion with offset ribs
- Standard card guides are 4" deep; optional 8" deep guides
- Optional leg brackets for horizontal storage of 4" deep model only; P/N KAL-1;
- Optional carrying handle, P/N KAH-2
Product Specifications
- WIDTH INCHES15
- DEPTH INCHES13-1/4
- HEIGHT INCHES4
- CAPACITY39 Slots
- ASSEMBLYUnassembled
- BOARD CAPACITY WIDTH INCHES14
- BOARD CAPACITY DEPTH INCHES6
- BRANDFancort
- COLOR FINISHBlack
- CONSTRUCTIONAluminum & Plastic
- MANUFACTURERS PART NUMBER76-14-4CP
- PACKAGE QUANTITY1
- PITCH INCHES0.260
- PRODUCT GROUPPCB Racks
- SLOT SIZE PITCH (W" x D")0.135 x 0.135
- TYPEKarry-All Model 76 Rack
- WEIGHT LBS2
- TEMPERATURE TOLERANCE185°F
Additional Information
- UNSPSC: 24102004
- Brand: Fancort Industries
- Color: Black
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: NJ
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 4.00
Product info last updated on May 7, 2024 1:55pm UTC
