Fancort Karry-All Model 80 Adjustable Conductive Medium Large PCB Rack 26"W x 12-1/2"D x 18-3/4"H 80-24-2
Fancort Karry-All Model 80 Adjustable Conductive Medium Large PCB Rack 26""W x 12-1/2""D x 18-3/4""H 80-24-2

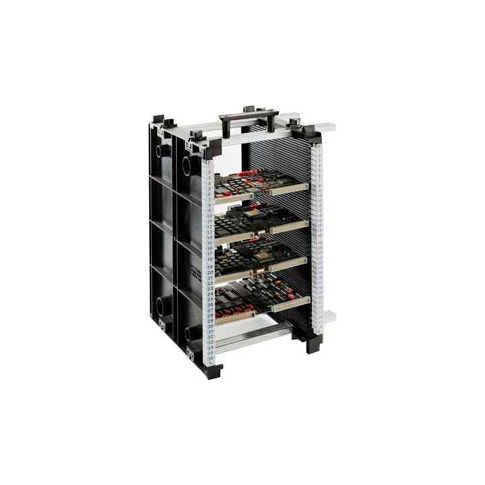

Fancort Karry-All Model 80 Adjustable Conductive Medium, Large PCB Rack, 26"W x 12-1/2"D x 18-3/4"H
The Fancort Karry-All Model 80 Adjustable Conductive PCB Rack are adjustable racks that hold boards securely on two opposite sides for maximum protection during transport and storage, either horizontally or vertically. Three different models of Karry-Alls are featured, each with a different injection-molded card guide to handle small, medium, large, very large, and hard-to-hold boards. All the card guides are molded in tough, reinforced conductive material that meets Mil Spec #B-81705-B for static discharge. The standard Karry-Alls can tolerate solvents and temperatures to 185°F. They are very easy to set up with rigid tubular aluminum extrusions and non-rotating nuts with large conductive plastic thumbscrews that lock into the extrusions.
Features
The Fancort Karry-All Model 80 Adjustable Conductive PCB Rack are adjustable racks that hold boards securely on two opposite sides for maximum protection during transport and storage, either horizontally or vertically. Three different models of Karry-Alls are featured, each with a different injection-molded card guide to handle small, medium, large, very large, and hard-to-hold boards. All the card guides are molded in tough, reinforced conductive material that meets Mil Spec #B-81705-B for static discharge. The standard Karry-Alls can tolerate solvents and temperatures to 185°F. They are very easy to set up with rigid tubular aluminum extrusions and non-rotating nuts with large conductive plastic thumbscrews that lock into the extrusions.
Features
- 75 numbered slots measure 0.110" W x 0.155" D on a 0.210" pitch
- Easy board insertion with offset ribs
- Steel stiffeners and molded ribbing prevent flexing
- Standard card guides are 12.5" deep; optional 18" or 24" guides for very large boards; P/N 80-18-18
- Optional carrying handle P/N KAH-2
Product Specifications
- WIDTH INCHES26
- DEPTH INCHES12-1/2
- HEIGHT INCHES18-3/4
- CAPACITY75 Slots
- ASSEMBLYUnassembled
- BOARD CAPACITY WIDTH INCHES24
- BOARD CAPACITY DEPTH INCHES12
- BRANDFancort
- COLOR FINISHBlack
- CONSTRUCTIONMetal & Plastic
- MANUFACTURERS PART NUMBER80-24-2
- PACKAGE QUANTITY1
- PITCH INCHES0.210
- PRODUCT GROUPPCB Racks
- SLOT SIZE PITCH (W" x D")0.110 x 0.155
- TYPEKarry-All Model 80 Rack
- WEIGHT LBS12
- TEMPERATURE TOLERANCE185°F
Additional Information
- UNSPSC: 24102004
- Brand: Fancort Industries
- Color: Black
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: NJ
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 12.00
