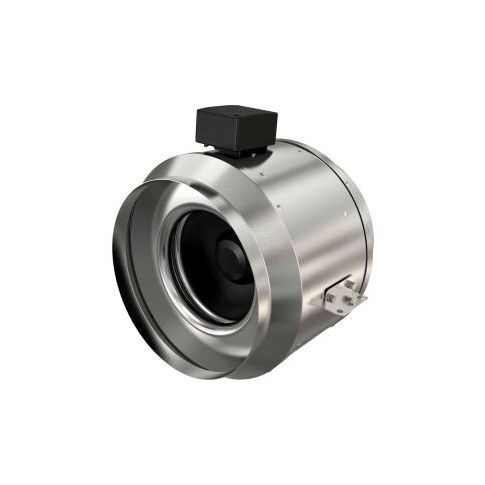

Fantech Inline Mixed Flow 8" Duct Fan FKD 8XL-230 230V 836 CFM FKD 8XL-230

Fantech Inline Mixed Flow 8" Duct Fan FKD 8XL-230, 230V, 836 CFM

Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust. FKD straight-through inline design fans are available in a wide range of sizes for easy installation in duct sizes from 8" to 20". Fans can be mounted at any angle at any point along the duct work. Motors are capable of operating in airstream temperatures up to 140° F. Motor bearings are permanently sealed, self lubricating ball type.

Features:

• Mixed flow impeller
• 100% speed controllable
• Can be installed in any position
• External rotor motor
• Galvanized steel housing
• Three-year warranty
• Certified by AMCA Air, AMCA Sound and cULus
