Digital Multimeter 10A 1000V 50 MOhms MPN:FLUKE-77-4/CWG
Free Shipping
In Stock

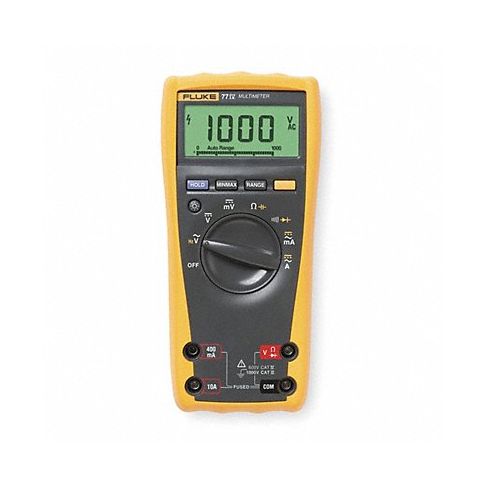

Introducing the Fluke 77 IV digital multimeter an incredibly versatile tool for electrical and electronic troubleshooting! This easy-to-use device measures AC/DC volts, amps, resistance, capacitance, and frequency, helping technicians quickly identify issues in various applications. With its large backlit display, min/max function to track signal fluctuations, and safety rating of CAT IV 1000 V/CAT III 600 V, the Fluke 77 IV can handle high-voltage situations while maintaining accuracy and precision. Use it in various fields like industrial maintenance, HVAC, or electrical services for a wide range of applications where quick and reliable troubleshooting is critical. Say goodbye to guesswork and frustration get the Fluke 77 IV digital multimeter today!
Top product features:
- Large backlit display
- Measures AC/DC volts and amps, resistance, capacitance, and frequency
- Auto and manual ranging
Top product applications:
- Electrical and electronic troubleshooting in industries like industrial maintenance, HVAC, or electrical services
- General purposes in automotive, laboratories, or residential use
- Field service or bench repair work for technicians working with electricity
Technical Specifications
- Item Digital Multimeter
- Multimeter Style Full Size - General Features
- Instrument Counts 6000
- Basic DC Accuracy +/-0.30% of Reading + 1 Digit
- Instrument Safety Rating CAT IV 600V
- Max. AC Volts 1,000
- Max. DC Volts 1,000
- Max. AC Amps 10
- Max. DC Amps 10
- Audible Continuity Yes
- Max. Ohms 50 megohm
- Instrument Frequency Counter Range 0.01 Hz to 100 kHz
- Capacitance Range 1 nF to 9999 uF
- Duty Cycle No
- Display Backlit LCD
- Bar Graph Yes
- Min./Max. Memory Yes
- Data Logging No
- Battery Type 9V Alkaline
- AC Response Average
- Auto Ranging Yes
- Special Features Battery Door, Ergonomic Overmolded Housing with Integrated Probe Holders
- Diode Test Yes
- Auto Power Off Yes
- Calibration Certificate Included Yes
- NIST Certification By Techni-Tool
- Standards ANSI/ISA S82.02.01, CSA C22.2-1010.1, UL, VDE
- Series FLUKE (R) Fluke-77-IV
- Includes Battery, Instructions, Test Leads
- Manufacturers Warranty Length Limited Lifetime
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLUKE774CWG
- MPN: FLUKE-77-4/CWG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9030310000
- GDS Category Name: Digital Multimeters
- GDS Family Name: Electrical Power Testing
- GDS Segment Name: Test Instruments
- UNSPSC: 41113630
- UNSPSC Class ID: 36
- UNSPSC Commodity Name: Electrical measuring and testing equipment
- UNSPSC Commodity ID: 30
- UNSPSC Commodity Name: Multimeters
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
