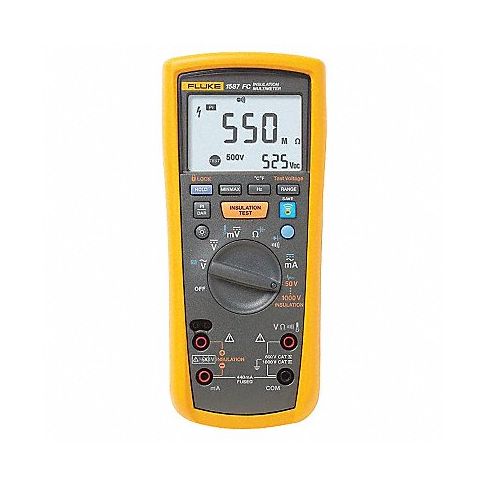

Megohmmeter 50 to 1000V DC LCD MPN:FLUKE-1587 FC/WWG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-45ZA03
Megohmmeter 50 to 1000V DC LCD
The Fluke 1587FC Insulation Multimeter is an essential tool for electricians, mechanics, and anyone who needs to maintain insulation on electrical systems. This powerful device tests both the continuity of wire connections and the integrity of electrical insulation with ease. With a safe AC/DC voltage detection feature, users can keep themselves out of harm's way while conducting their tasks. By incorporating Fluke Connect Assets, you can share test results and historical data with other crew members in real-time for easy problem solving on the go. Perfect for applications that require insulation testing such as motors, transformers, capacitors, cables, switchgear, and more, this versatile device is a must-have for any electrical professional.
Top product features:
- AC/DC voltage detection for safe testing
- Share measurement results wirelessly using smartphones
- Capacitance, diode test, temperature, minimum/maximum, frequency functions
Top product applications:
- Insulation testing on motors, transformers, capacitors, and cables
- AC/DC voltage detection for safe testing of electrical systems
- Motor drive filtering to identify intermittent faults in power quality monitoring
Fluke 1587FC insulation multimeter provides 2 powerful tools in 1 a multimeter and an insulation tester. Safe keep yourself out of harm's way by monitoring your test measurements remotely. Share your measurement results wirelessly using your smartphone (Android 4.3 and up or iPhone 4s and later). Smartphone use allows you to find problems by saving and comparing measurements over time. Historical tracking and trending of assets identifies degradation over time, and allows real-time decisions to be made in the field with Fluke Connect Assets (sold separately). Autodischarge of capacitative voltage AC/DC voltage, DC mV, AC/DC mA, resistance, and continuity Large digital display with backlight Filter for motor drive measurements Capacitance, diode test, temperature, minimum/maximum, frequency Auto power off to save battery power
Technical Specifications
- Item Insulation Multimeter
- Output Test Voltage 50/100/250/500/1000V DC
- Insulation Resistance Range 0.01M Ohms to 2G Ohms
- Live Circuit Detection Greater Than 30V
- Resistance Range 0 to 50 megohm
- Capacitance Range 1000 nF to 9999 uF
- Display Digital LCD with Backlit
- Max. AC Amps 400 mA
- Max. DC Amps 400 mA
- Max. AC Volts 1,000
- Max. DC Volts 1,000
- Temp. Range -40 Degrees to 998 Degrees F
- Auto Power Off Yes
- Diode Test Yes
- Auto Ranging Yes
- Data Logging 6000
- Interface Bluetooth
- Features PI/DAR, Memory Storage Through Mobile App, Temperature Compensation Through Mobile App, VFD Low Pass Filter
- Power Source (4) AA Batteries
- Safety Rating CAT IV 600V, CAT III 1000V
- Calibration Certificate No
- Includes Remote Probe, Contact Temperature Probe
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLUKE1587FCWWG
- MPN: FLUKE-1587 FC/WWG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9030320000
- GDS Category Name: Megohmmeters and Insulation-Testing Multimeters
- GDS Family Name: Electrical Power Testing
- GDS Segment Name: Test Instruments
- UNSPSC: 41113624
- UNSPSC Class ID: 36
- UNSPSC Commodity Name: Electrical measuring and testing equipment
- UNSPSC Commodity ID: 24
- UNSPSC Commodity Name: Insulation testers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 24, 2024 2:27pm UTC
Category: Electrical Power Testing
