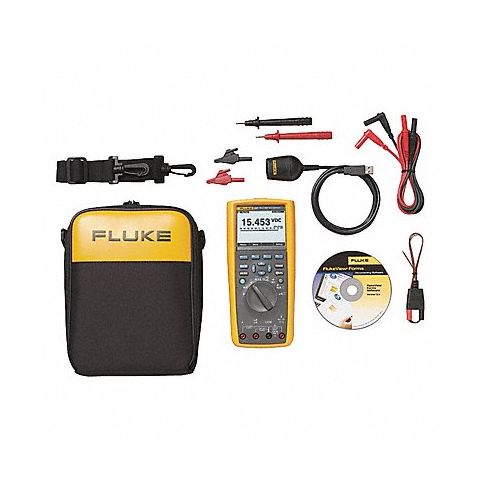

Digital Multimeter 1000V 10A 500 MOhms MPN:FLUKE-287/FVF

Compatible with Fluke Connect™ Mobile App, this kit is engineered to help R&D, maintenance, manufacturing, and design professionals increase productivity when working with electronic circuits and systems. It features a built-in data logger and on-screen meters to track down elusive intermittent problems. With FlukeView Forms, users can document, store, and analyze individual readings or series of measurements, overlay logged data to find cause and affect relationships, create meaningful graphs and tables for a professional report.

Technical Specifications

• Item Digital Multimeter Kit
• Multimeter Style Full Size - Advanced Features
• Instrument Counts 50,000
• Basic DC Accuracy +/-0.025% of Reading +2 Digits
• Instrument Safety Rating CAT III 1000V, CAT IV 600V
• Max. AC Volts 1,000
• Max. DC Volts 1,000
• Max. AC Amps 10
• Max. DC Amps 10
• Audible Continuity Yes
• Max. Ohms 500 megohm
• Instrument Frequency Counter Range 0.01 Hz to 1 MHz
• Capacitance Range 1 nF to 100 mF
• Temp. Range -328 Degrees to 2462 Degrees F
• Duty Cycle 0.01 to 99.99%
• Display Backlit Digital - 1/4 VGA Dot Matrix
• Bar Graph Yes
• Min./Max. Memory Yes
• Data Logging Yes
• Peak Hold Yes
• Battery Type AA Alkaline
• AC Response TRMS
• Interface USB
• Data Hold Yes
• Auto Ranging Yes
• Special Features Trend Capture Plots Measurements As Single Line to Help Detect Anomalies
• Diode Test Yes
• Auto Power Off Yes
• Calibration Certificate Included No
• Series FLUKE (R) Fluke-287/FVF
• Includes Alligator Clips, Batteries, Instructions, Interface Cable, Magnetic Hanging Kit, Software, Temperature Probe, Test Leads
• Manufacturers Warranty Length Limited Lifetime

Manufacturer Details

• Manufacturer: Fluke
• Condensed Mfg Number: FLUKE287FVF
• MPN: FLUKE-287/FVF

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030320000
• GDS Category Name: Digital Multimeters
• GDS Family Name: Electrical Power Testing
• GDS Segment Name: Test Instruments
• UNSPSC: 41113630
• UNSPSC Class ID: 36
• UNSPSC Commodity Name: Electrical measuring and testing equipment
• UNSPSC Commodity ID: 30
• UNSPSC Commodity Name: Multimeters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
