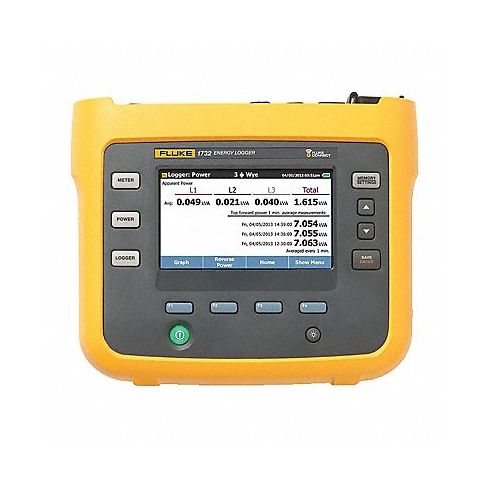

Energy Logger 6000A Max 4 Channel MPN:FLUKE 1732/B

The FLUKE® 1732B 3-phase electrical energy logger (power quality analyzer) introduces a new simplicity to discovering sources of electrical energy waste. Helps you discover when and where energy in your facility is being consumed—from the service entrance to individual circuits. Identify opportunities for energy savings.

• Allows you to maintain safer working distances and make critical decisions in real-time, reducing the need for protective equipment, site visits, and check-ins.
• Energy Analyze software makes it easy to download and analyze every detail of energy consumption with automated reporting.
Note: Basic version excludes current probes. Fluke Connect® module support is optional (available separately).

Technical Specifications

• Item Energy Logger
• Phase 3
• Max. Watts 1000TW
• Max. VA 1000TVA
• Max. AC Amps 6,000
• Current Accuracy +/-1%
• Current Channels 5
• Max. AC Voltage 1,000
• Voltage Accuracy 0.20%
• Voltage Channels 4
• Calibration Frequency 42.5 to 69 Hz
• Power Factor -1 to 1
• AC Response 5 kHz
• Display Color LCD Touch Screen
• Display Resolution 480 x 272
• Sampling Rate 10.24kHz
• Crest Factor Less Than 3
• Safety Rating CAT III 1000V, CAT IV 600V, IEC 61010-1, IEC 61010-2-031
• Data Logging Yes
• Storage 2 GB
• Calibration Certificate NIST
• Includes Energy Logger with Fluke Connect
• Manufacturers Warranty Length 2 yr

Manufacturer Details

• Manufacturer: Fluke
• Condensed Mfg Number: FLUKE1732B
• MPN: FLUKE 1732/B

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: RO
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030390100
• GDS Category Name: Power Quality Analyzers Loggers and Recorders
• GDS Family Name: Electrical Power Testing
• GDS Segment Name: Test Instruments
• UNSPSC: 41113708
• UNSPSC Class ID: 37
• UNSPSC Commodity Name: Electronic and communication measuring and testing instruments
• UNSPSC Commodity ID: 08
• UNSPSC Commodity Name: Power meters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
