Digital Clamp Meter LCD MPN:Fluke-773/NIST
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxo-4ffg7

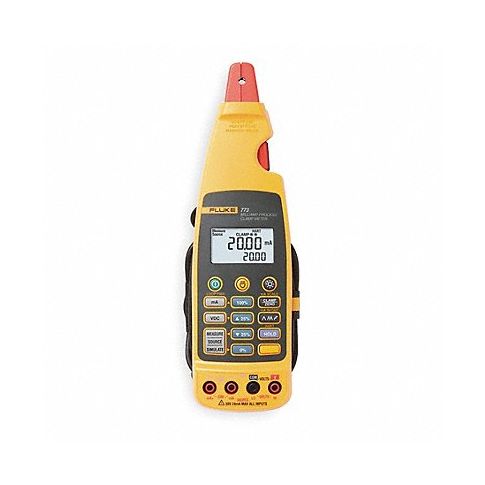

Digital Clamp Meter LCD
The FLUKE® 773 milliamp process clamp meter is designed to save users time and money measuring output signals, by eliminating time wasting activities. This digital clamp-on meter troubleshoots and repairs 4-20mA loops without breaking the loop or bringing down the system. Includes NIST Certificate.
• Measures mA signals for PLC and control system analog I/O without breaking the loop.
• Measures output signals from transmitters without breaking the loop.
• Detachable clamp with extension cable allows measurements in tight locations.
• Measurement spotlight illuminates hard-to-see wires in dark enclosures.
• Measures up to 99.9mA range noncontact.
• Automatic power off saves battery life.
• Measures mA signals for PLC and control system analog I/O without breaking the loop.
• Measures output signals from transmitters without breaking the loop.
• Detachable clamp with extension cable allows measurements in tight locations.
• Measurement spotlight illuminates hard-to-see wires in dark enclosures.
• Measures up to 99.9mA range noncontact.
• Automatic power off saves battery life.
Technical Specifications
- Item Clamp Meter
- Digital/Analog Digital
- Clamp Meter Jaw Style Clamp On
- Max. AC Amps 99.9 mA
- Max. DC Amps 99.9 mA
- Max. AC Volts 30 V
- Max. DC Volts 30 V
- Jaw Capacity 0.2 in (5 mm)
- Temp. Range 14 Degrees to 122 Degrees F
- Counts 2,400, 99.9
- Battery Type AA
- Calibration Certificate NIST
- AC Response TRMS
- Display LCD
- Includes Batteries, Instructions, Soft Carrying Case, Test Leads
- Auto Ranging Auto Ranging
- Data Hold Yes
- AC Current Accuracy +/-2.0% + 5 Digits
- Operating Temp. 14 Degrees to 122 Degrees F
- Special Features Non Contact DC mA, Source 0 to 10 VDC, Source and Simulate 0 to 24 mA DC
- Manufacturers Warranty Length 1 yr for Clamp and Cable, 3 yr for Electronics
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: Fluke773NIST
- MPN: Fluke-773/NIST
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: TW
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Digital Clamp Meters
- GDS Family Name: Electrical Power Testing
- GDS Segment Name: Test Instruments
- UNSPSC: 41113648
- UNSPSC Class ID: 36
- UNSPSC Commodity Name: Electrical measuring and testing equipment
- UNSPSC Commodity ID: 48
- UNSPSC Commodity Name: Clamp On Multimeter
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
