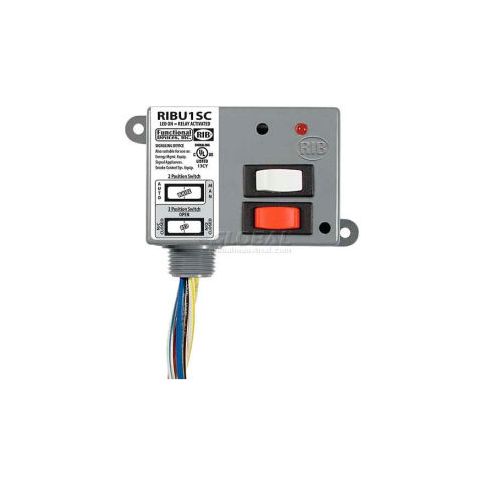

RIB® Enclosed Relay RIBU1SC, 10A, SPDT, 10-30VAC/DC/120VAC, Override
The Pilot Series contains relays that are rated at 10 or 15 Amps. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.
The Pilot Series contains relays that are rated at 10 or 15 Amps. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.
Product Specifications
- INCLUDESOverride
- CONTACT TYPESPDT
- VOLTAGE10-30VAC/DC 120VAC
- # RELAYS1
- WARRANTY YEARS1
- LENGTH INCHES2.3
- WIRE SIZE16"
- HUMIDITY RANGE5 To 95 Percent (Noncondensing)
- BRANDRIB®
- WIRE RATING600V
- MANUFACTURERS PART NUMBERRIBU1SC
- APPROVALS OR CERTIFICATIONSUL Listed
- AMPS10
- EXPECTED RELAY LIFE10 Million Cycles Minimum Mechanical
- WIDTH INCHES3.2
- OPERATING TEMPERATURE-30° To 140°F
- HEIGHT INCHES1.8
- DESCRIPTIONEnclosed Relay
Additional Information
- UNSPSC: 39122300
- Brand: Functional Devices
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: JA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 2.30
- Package Width: 3.20
- Package Height: 1.80
- Package Weight: 0.53
