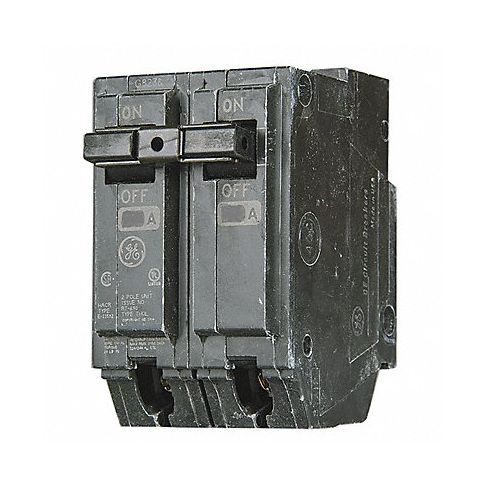

Circuit Breaker 90A Plug In 120/240V 2P MPN:THQL2190
Circuit Breaker 90A Plug In 120/240V 2P
Introducing our new Circuit Breaker 90A Plug In 120/240V 2P from Ge - the perfect solution for panelboards and load centers! These miniature circuit breakers offer hassle-free installation, easy connectivity to power supply through bus bars, and provide advanced protection against faults in the circuit. Ideal for HACR applications, these circuit breakers are UL listed, and come in a variety of amps and voltage ratings to meet your specific needs. Say goodbye to pigtail wires and messy panelboards - with our Circuit Breaker, you can stay organized while enjoying maximum protection and safety for your electrical systems!
Top product features:
- Easy installation
- Connects to power supply through bus bars
- UL listed for HACR applications
Top product applications:
- Panelboards and load centers
- HACR (heating, air conditioning, and refrigeration) systems
- Providing advanced protection for electrical circuits
These THQP, THQL, and THHQL series miniature circuit breakers plug into place in panelboards and load centers without requiring DIN rail, so they're easier to install than unit-mount breakers. They interrupt currents when faults are detected in the circuit. These breakers connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center. They're UL listed for use in HACR (heating, air conditioning, and refrigeration) applications.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 90 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series AQ
- Phase Single
- Series THQL
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Power Mark Gold Load Centers and AQ Lighting Panels
- Terminal Connection Lug
- Frame Size 100A/THQ
- Length 3.28 in
- Width 2 in
- Depth 2.38 in
- Min. Operating Temp. 140 Degrees F
- Max. Operating Temp. 167 Degrees F
- Min. Wire Size 6 AWG
- Max. Wire Size 1/0 AWG
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: GE
- Condensed Mfg Number: THQL2190
- MPN: THQL2190
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536308000
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
